Exact scalar and vector defaults read from every shipped MI_PP preset. Names here can be passed to Blueprint material parameter setters. The original/effect capture uses the same camera for both images.

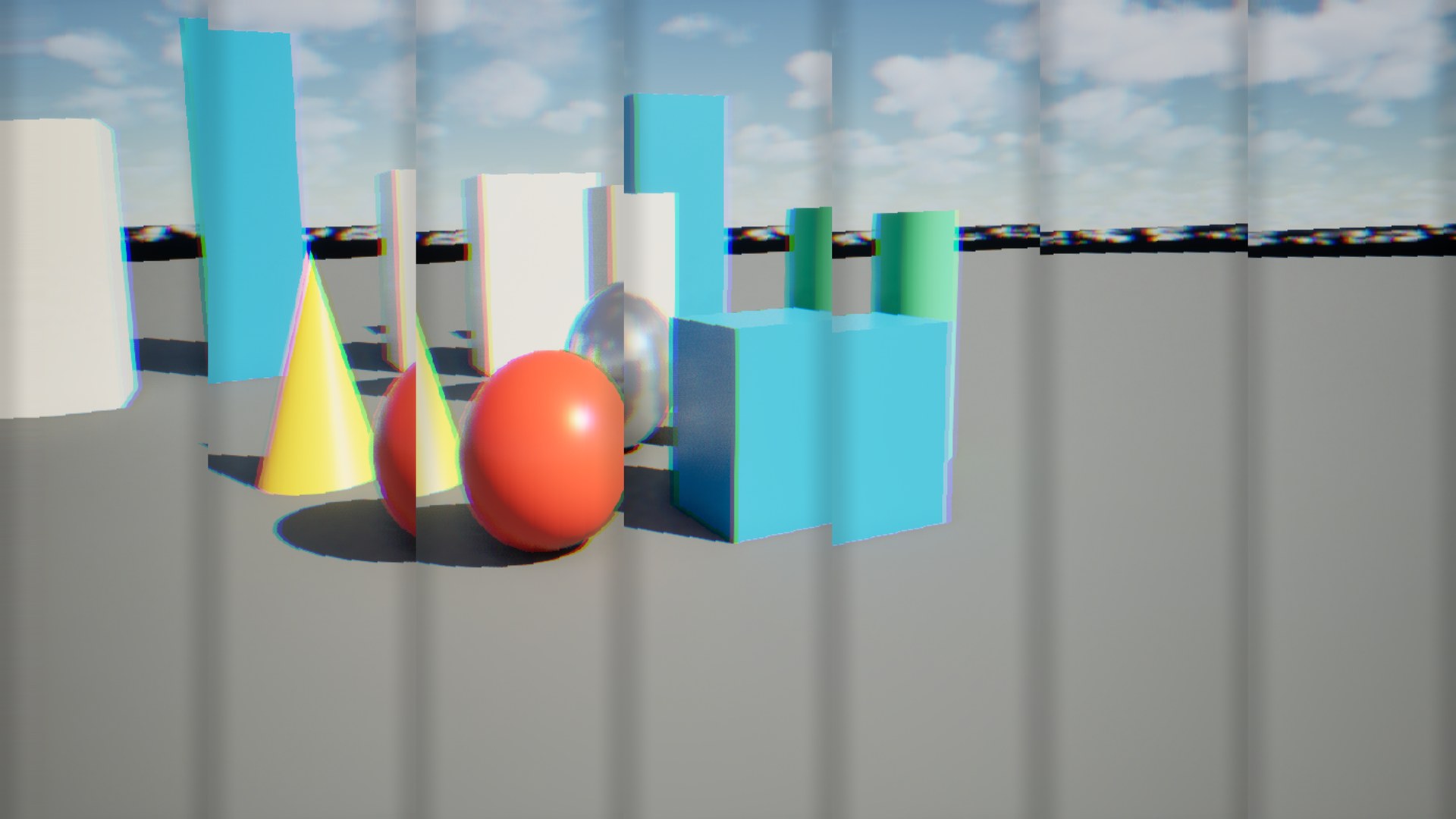

Prism Panels — Distortion & Glitch
Transform scene sampling or add procedural analog and digital image damage.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_Barrel
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| PrismPanels_Panels | Scalar | 7 |
| PrismPanels_Pixels | Scalar | 32 |
| PrismPanels_Dispersion | Scalar | 5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |

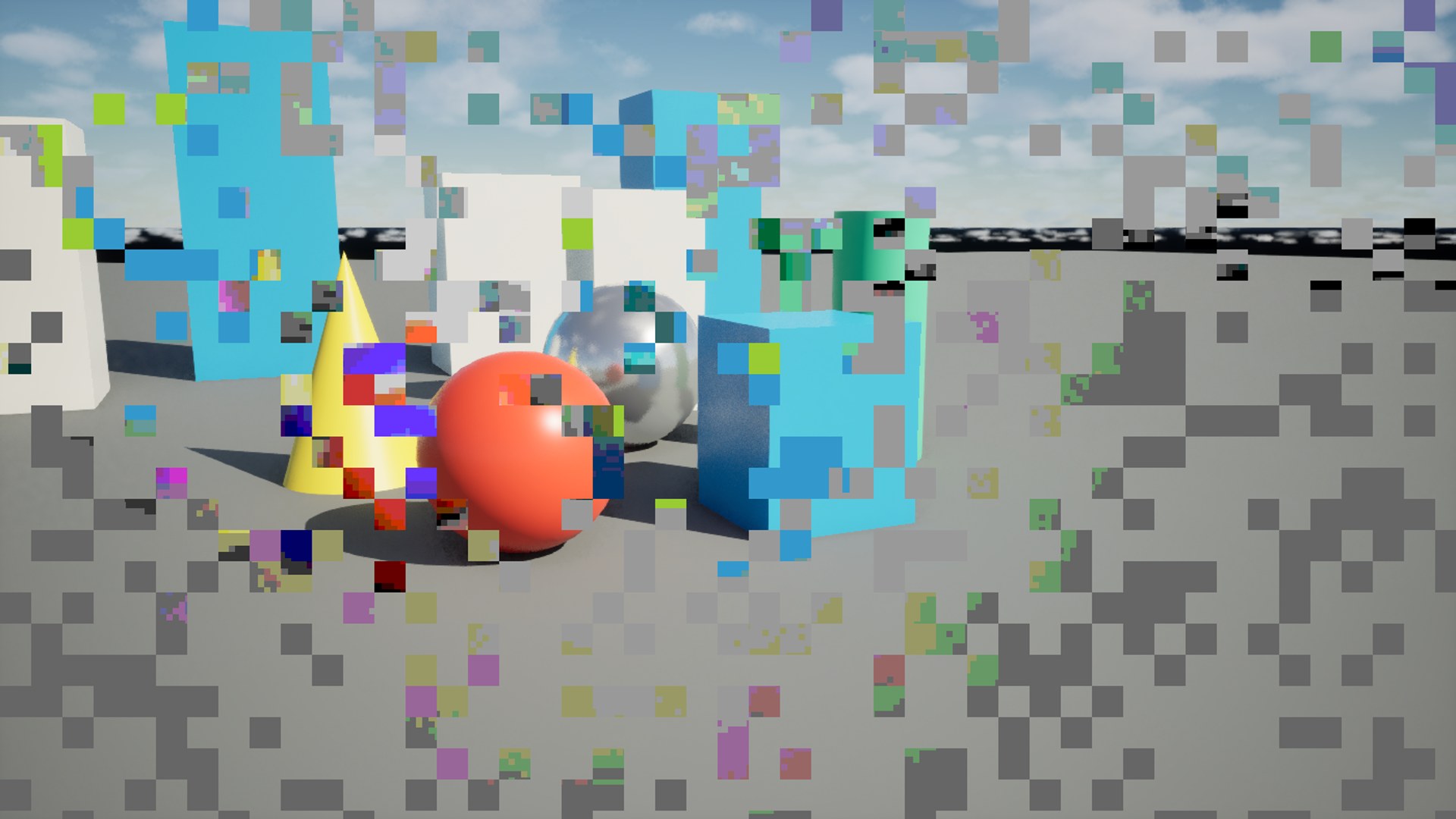

Codec Macroblocks — Distortion & Glitch
Transform scene sampling or add procedural analog and digital image damage.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_BlockGlitch
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Macroblocks_BlockSize | Scalar | 30 |
| Macroblocks_Density | Scalar | 0.3 |
| Macroblocks_Rate | Scalar | 4 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |

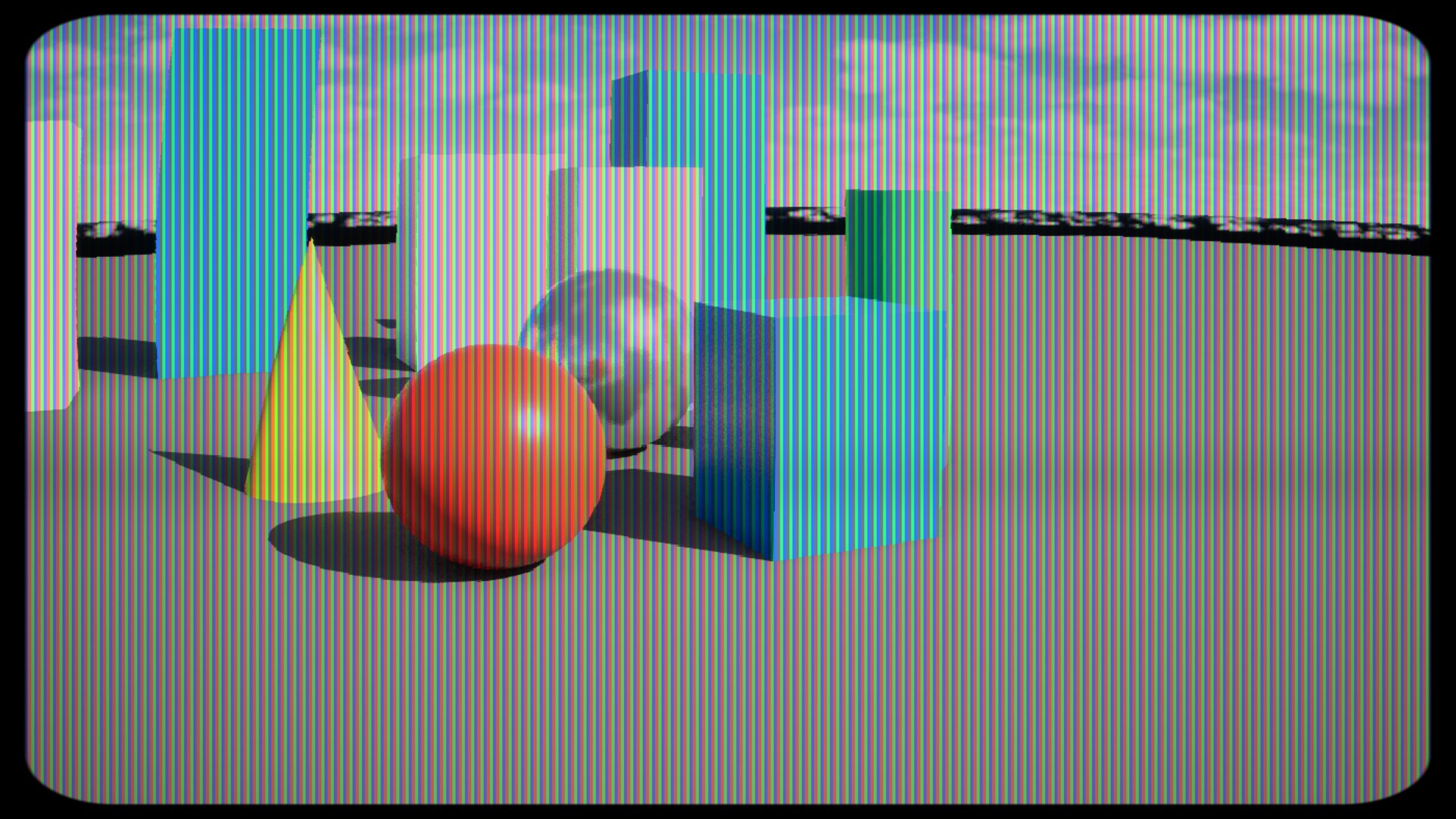

Phosphor CRT — Distortion & Glitch
Transform scene sampling or add procedural analog and digital image damage.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_CRT
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Curvature | Scalar | 0.12 |
| Distortion_Zoom | Scalar | 1.15 |
| CRTPhosphor_Pitch | Scalar | 3 |
| CRTPhosphor_Strength | Scalar | 0.65 |
| CRTPhosphor_Scan | Scalar | 0.23 |
| FilmGate_Inset | Scalar | 0.018 |
| FilmGate_Corner | Scalar | 0.06 |
| FilmGate_Perforations | Scalar | 0 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |

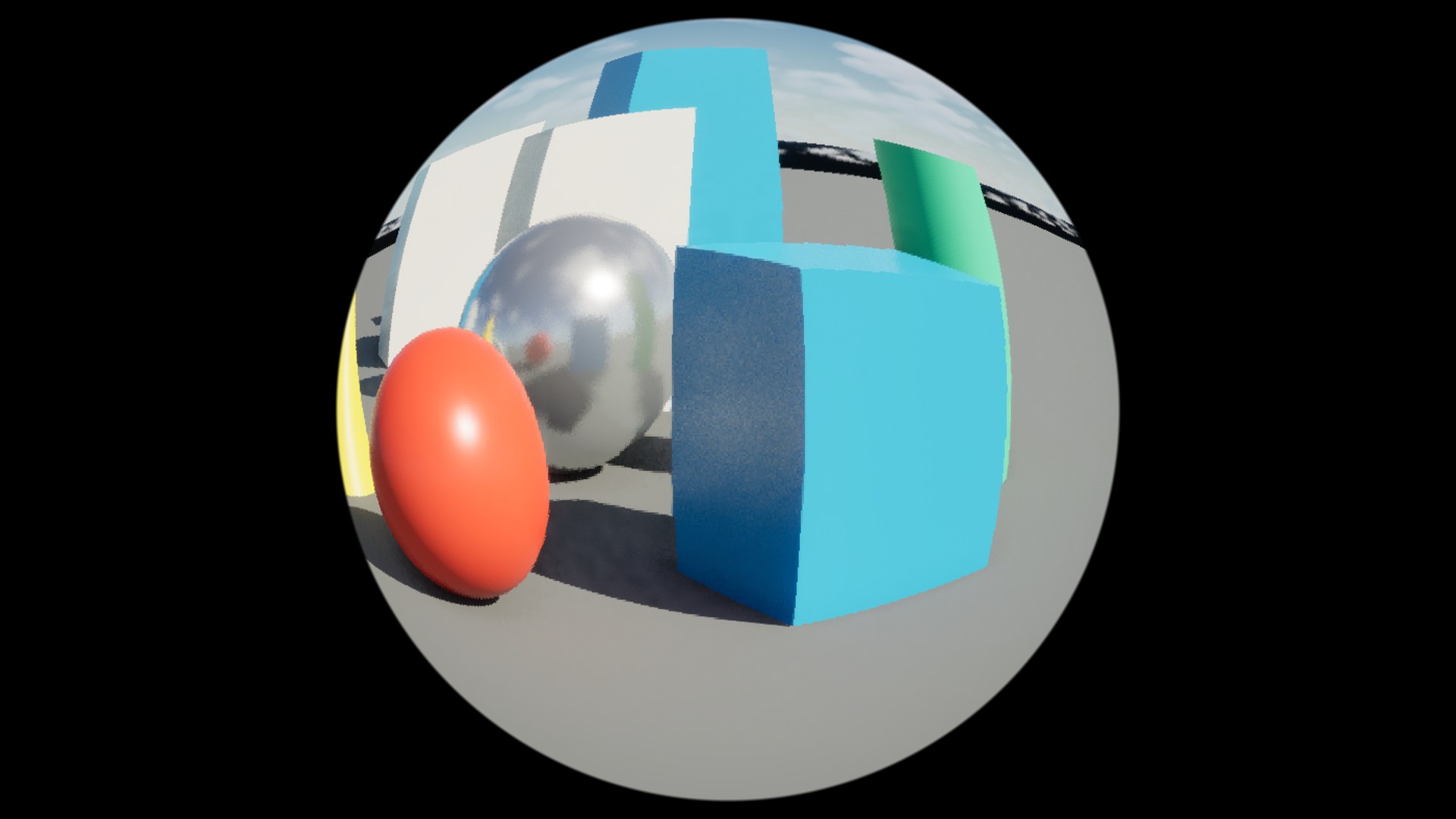

Circular Fisheye — Distortion & Glitch
Transform scene sampling or add procedural analog and digital image damage.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_Fisheye
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| CircularFisheye_FieldOfView | Scalar | 130 |
| CircularFisheye_Radius | Scalar | 0.48 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Convective Heat Haze — Distortion & Glitch
Time-driven distortion offsets scene samples to suggest hot air.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_HeatHaze
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 8 |
| Distortion_Scale | Scalar | 28 |
| Distortion_Speed | Scalar | 0.35 |
| Grade_Saturation | Scalar | 1 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1.025, 1, 0.965, 1 |

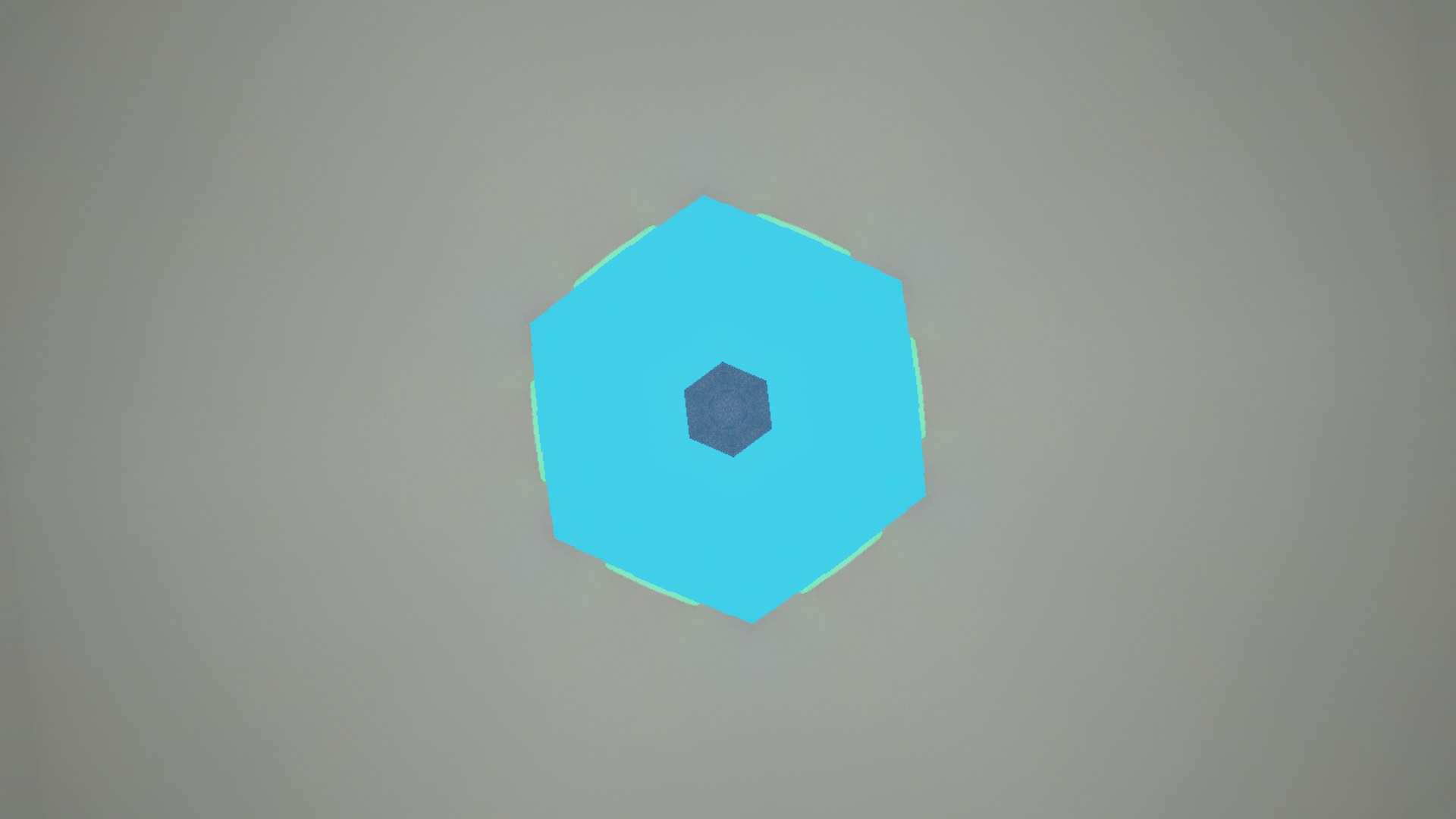

Kaleidoscope — Distortion & Glitch
Transform scene sampling or add procedural analog and digital image damage.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_Kaleidoscope
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Segments | Scalar | 6 |
| Distortion_RotationSpeed | Scalar | 0.06 |
| Grade_Saturation | Scalar | 1.25 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |

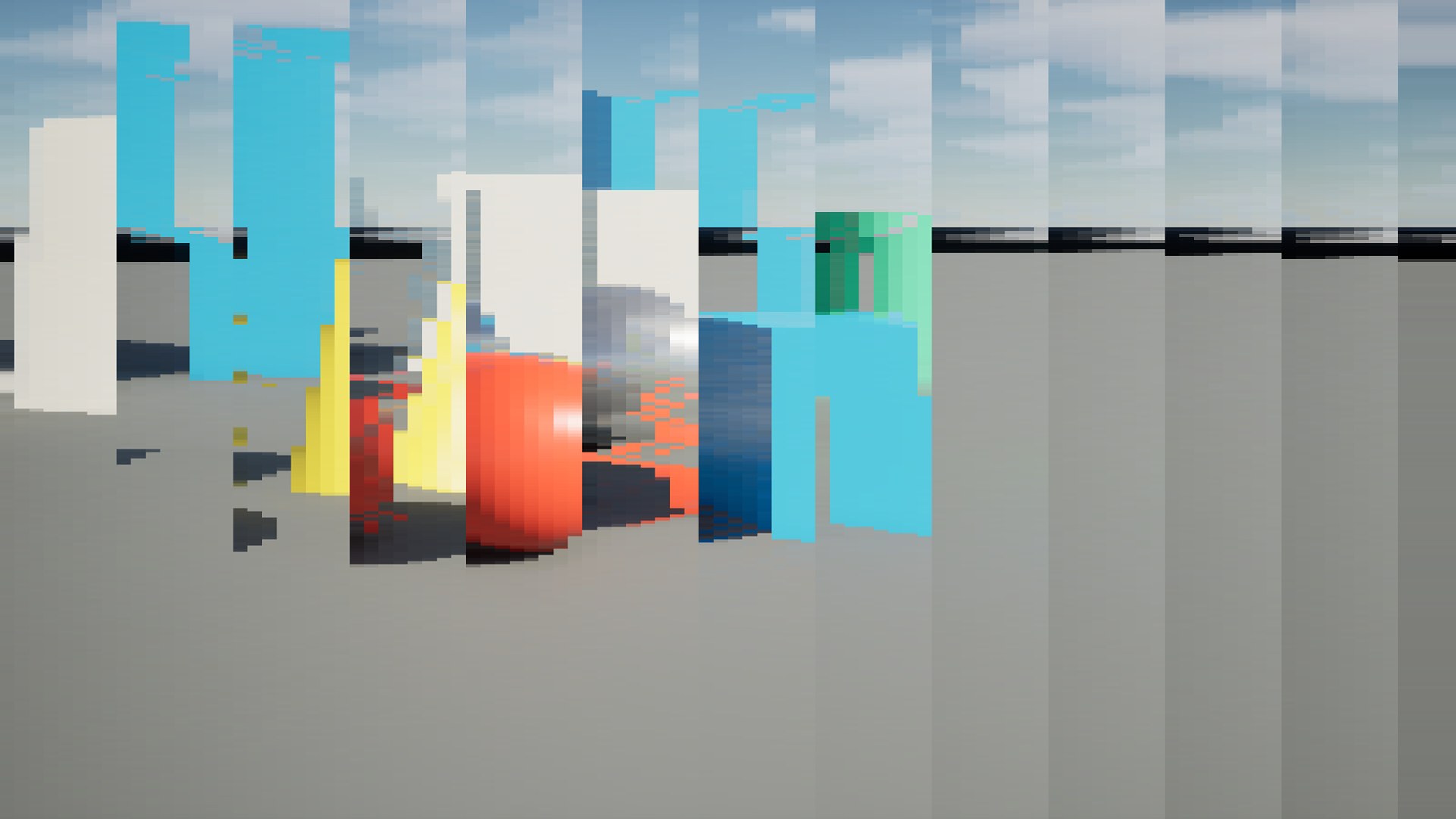

Pixel Sorting — Distortion & Glitch
Transform scene sampling or add procedural analog and digital image damage.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_RGBSplit
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| PixelSort_Span | Scalar | 112 |
| PixelSort_RowHeight | Scalar | 3 |
| PixelSort_Amount | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |

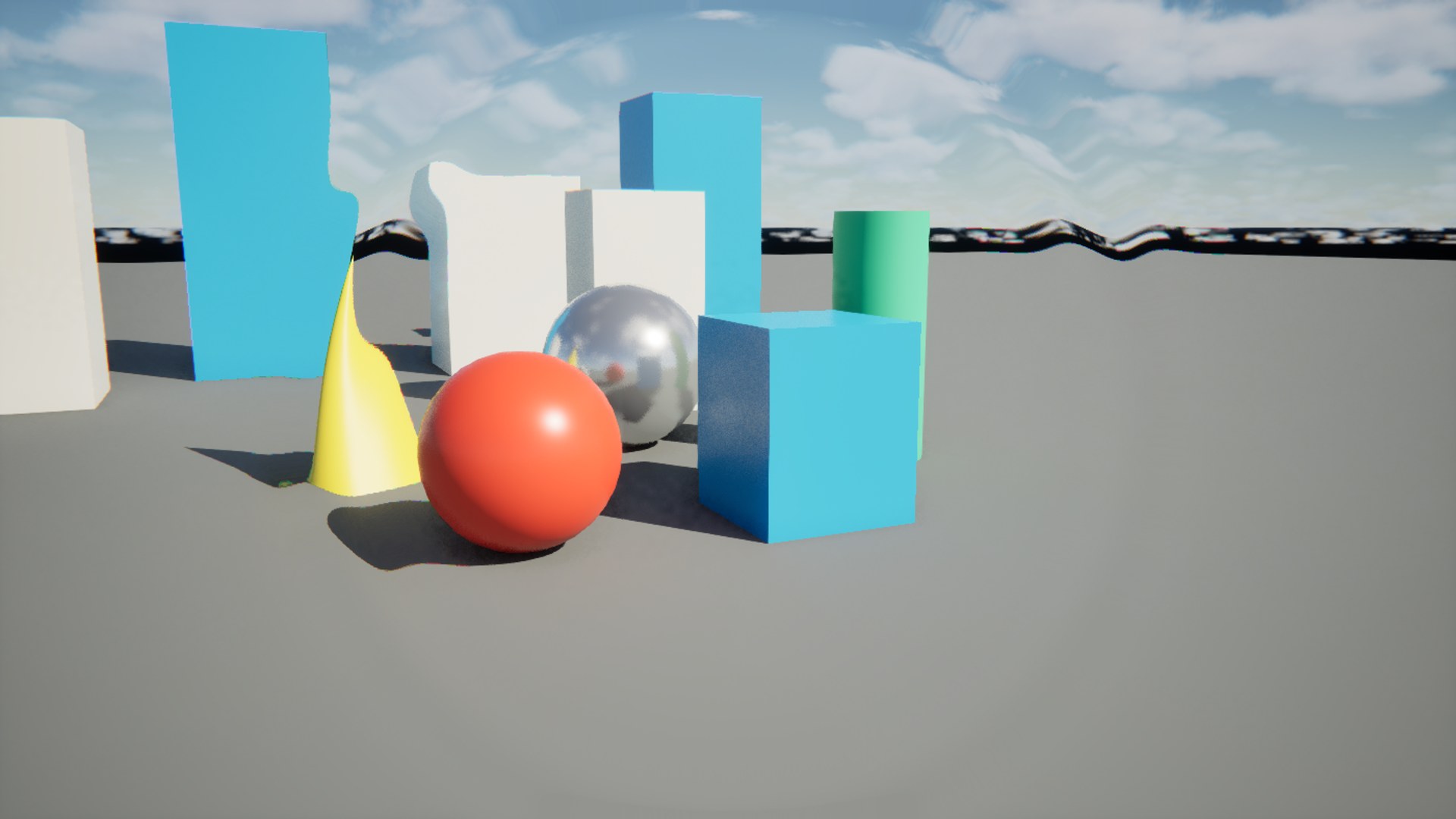

Shockwave Lens — Distortion & Glitch
Transform scene sampling or add procedural analog and digital image damage.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_Shockwave
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 26 |
| Distortion_Frequency | Scalar | 50 |
| Distortion_Speed | Scalar | 0.8 |
| Distortion_Pulse | Scalar | 1 |
| Chromatic_Pixels | Scalar | 1 |
| Chromatic_Radial | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |

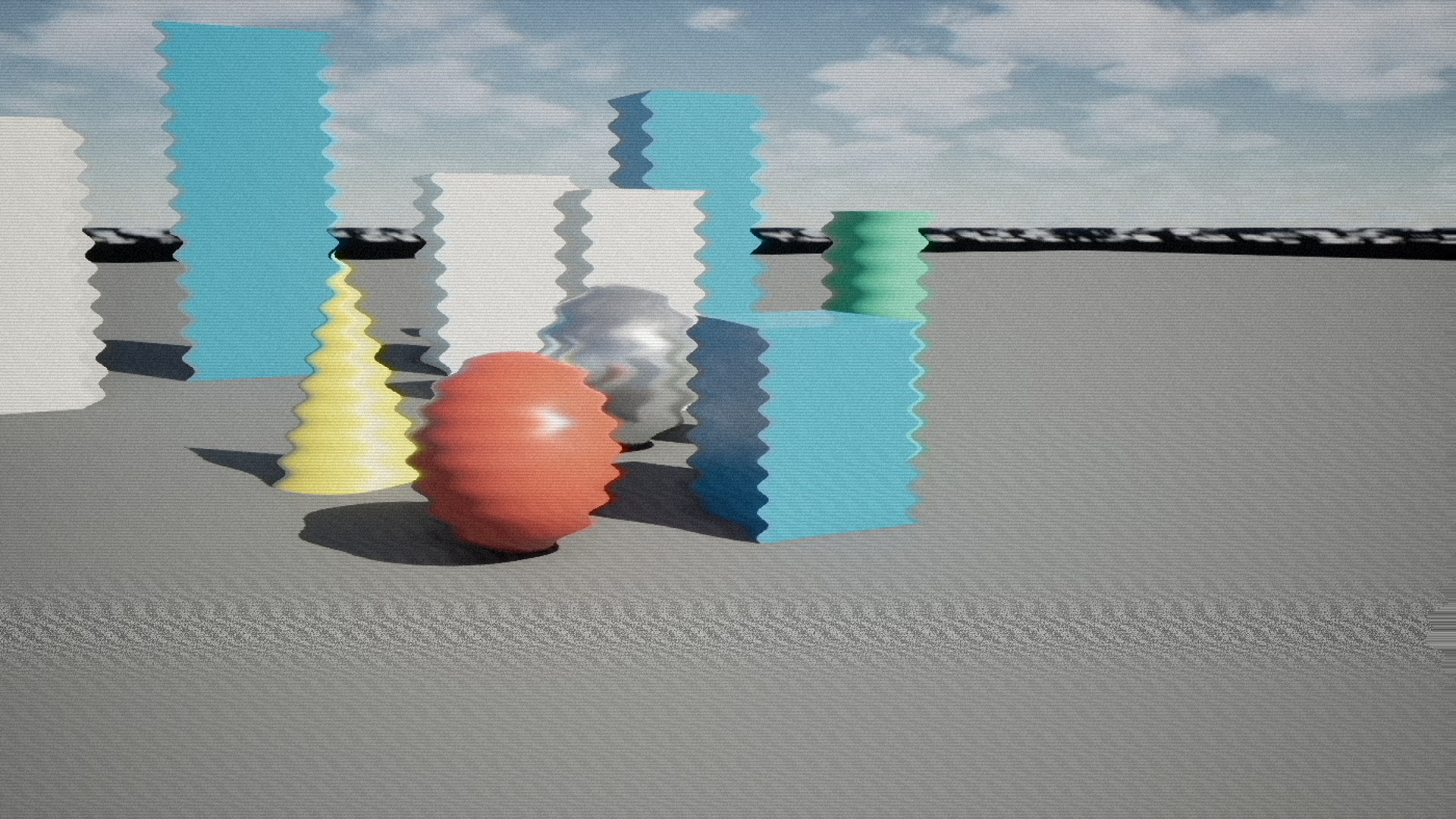

Analog Tape Chroma — Distortion & Glitch
Transform scene sampling or add procedural analog and digital image damage.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_VHS
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 22 |
| Distortion_Speed | Scalar | 0.18 |
| TapeChroma_Bleed | Scalar | 12 |
| TapeChroma_Noise | Scalar | 0.08 |
| Scanlines_Amount | Scalar | 0.12 |
| Scanlines_Pitch | Scalar | 3 |
| Scanlines_Speed | Scalar | 0 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Rain on Glass — Distortion & Glitch
Transform scene sampling or add procedural analog and digital image damage.
/ArtOfShaderUltimatePostProcess/Looks/DistortionGlitch/Instances/MI_PP_WaterRipple
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| RainGlass_Size | Scalar | 80 |
| RainGlass_Refraction | Scalar | 14 |
| RainGlass_Speed | Scalar | 0.35 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |

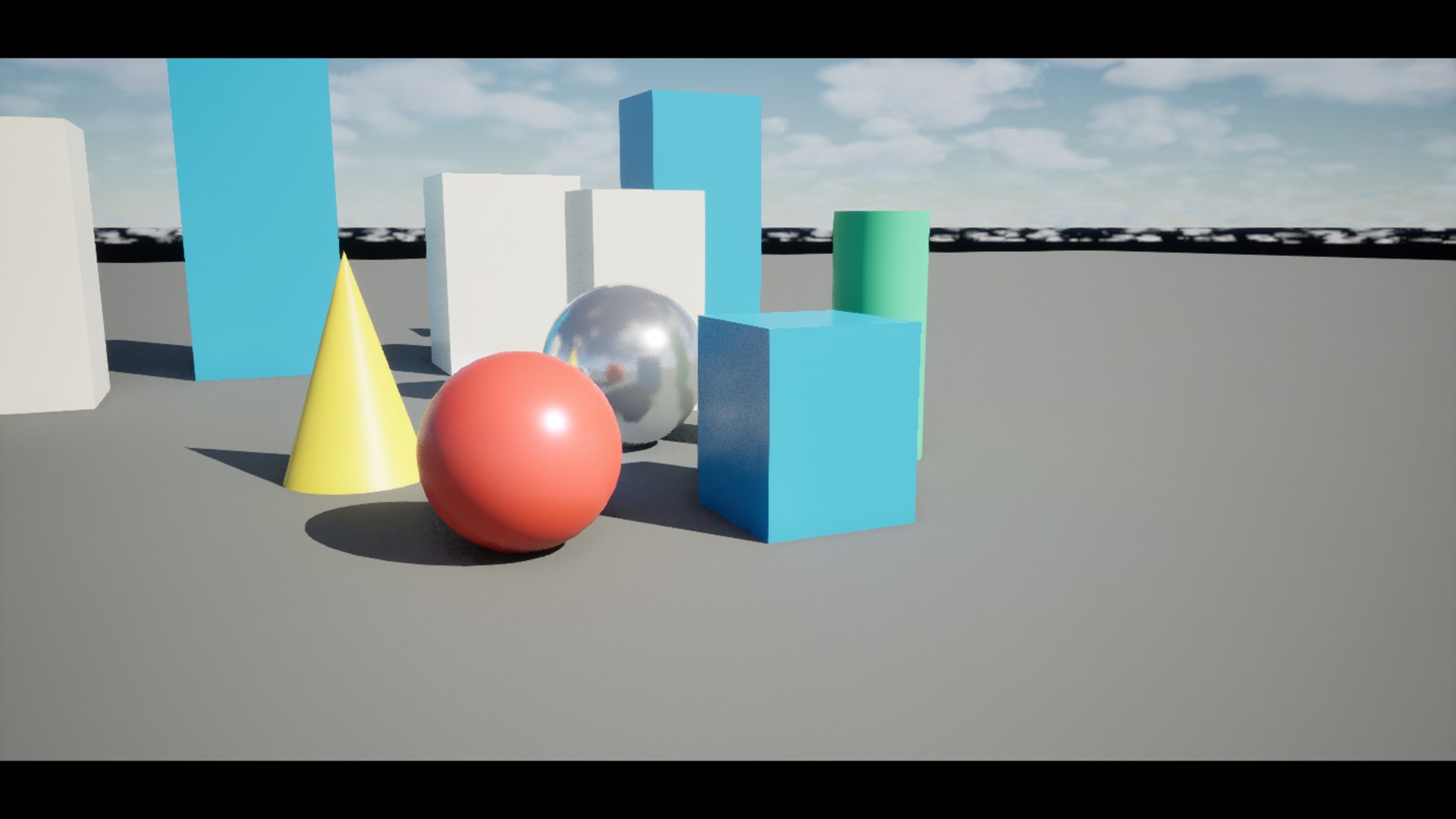

Anamorphic Optics — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_Anamorphic
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| AnamorphicOptics_Length | Scalar | 100 |
| AnamorphicOptics_Amount | Scalar | 0.3 |
| AnamorphicOptics_Threshold | Scalar | 0.94 |
| AnamorphicOptics_Letterbox | Scalar | 0.07 |
| Grade_Saturation | Scalar | 0.9 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |

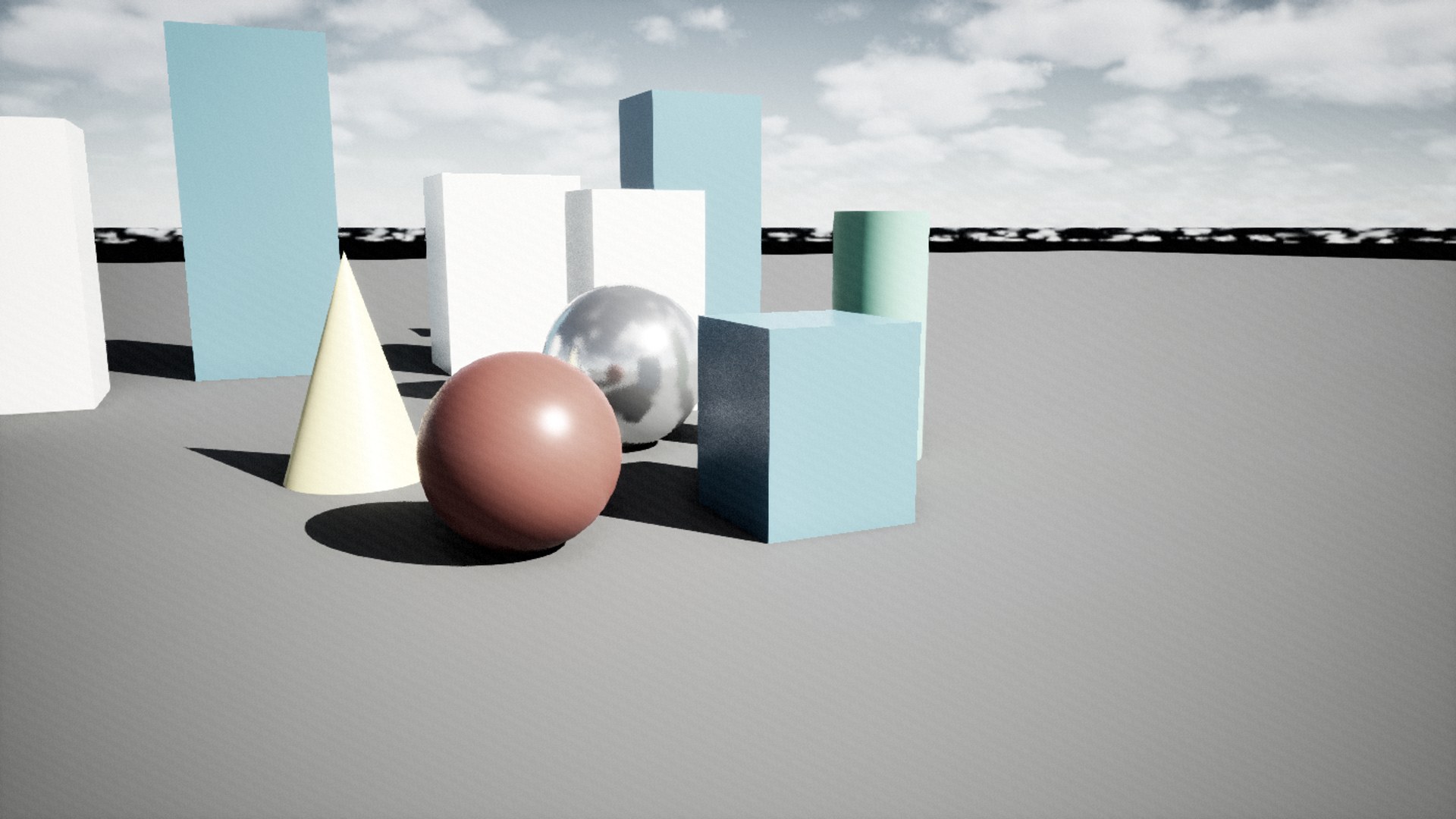

Bleach Bypass — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_BleachBypass
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Grade_Saturation | Scalar | 0.35 |
| Grade_Contrast | Scalar | 1.15 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Bleach_Amount | Scalar | 0.7 |
| Grain_Amount | Scalar | 0.05 |
| Grain_Scale | Scalar | 1 |
| Grain_Animate | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |
Split Diopter — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_CrossProcess
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| SplitDiopter_NearFocus | Scalar | 800 |
| SplitDiopter_FarFocus | Scalar | 1500 |
| SplitDiopter_Aperture | Scalar | 14 |
| SplitDiopter_SplitPosition | Scalar | 0.5 |
| Grade_Saturation | Scalar | 1 |
| Grade_Contrast | Scalar | 1.05 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |

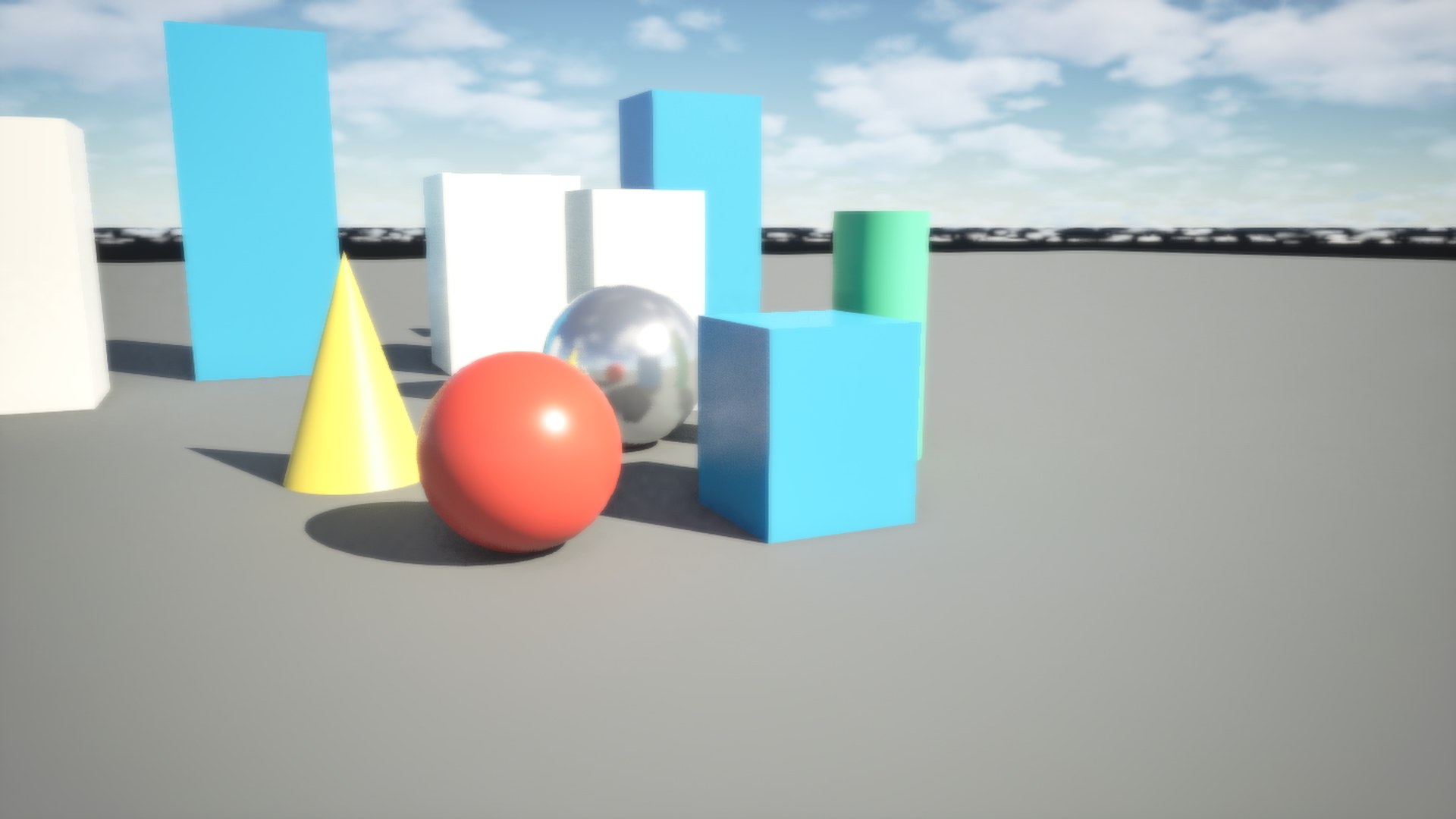

Dream Diffusion — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_DreamDiffusion
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Blur9_Radius | Scalar | 3 |
| Blur9_MixAmount | Scalar | 0.45 |
| Grade_Saturation | Scalar | 0.85 |
| Grade_Contrast | Scalar | 0.88 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1.15 |
| BloomStreak_Radius | Scalar | 2 |
| BloomStreak_Amount | Scalar | 0.45 |
| BloomStreak_Threshold | Scalar | 0.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |

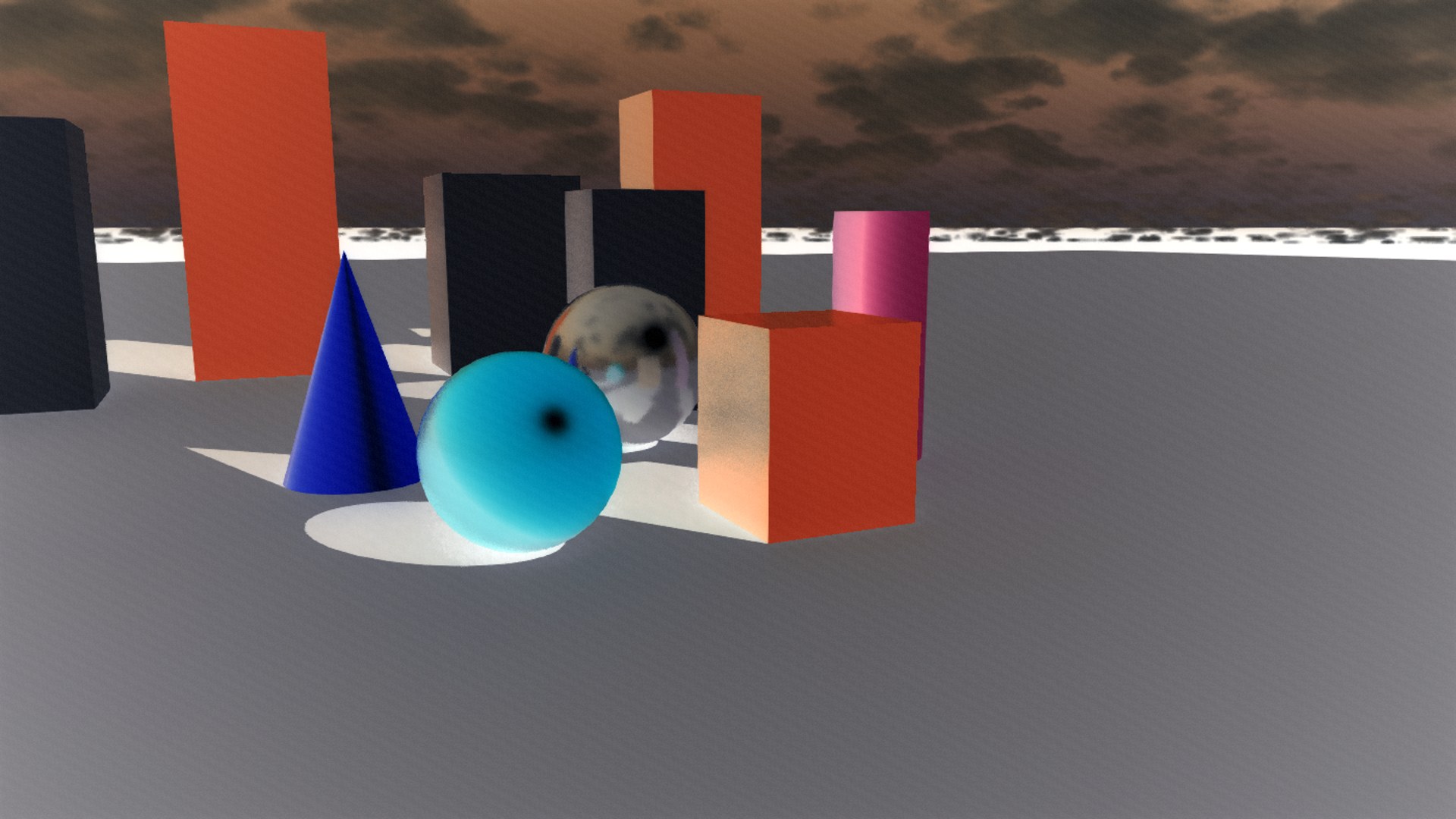

Color Negative — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_Negative
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Invert_Amount | Scalar | 1 |
| Grade_Saturation | Scalar | 0.9 |
| Grade_Contrast | Scalar | 1.08 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Grain_Amount | Scalar | 0.04 |
| Grain_Scale | Scalar | 1 |
| Grain_Animate | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |

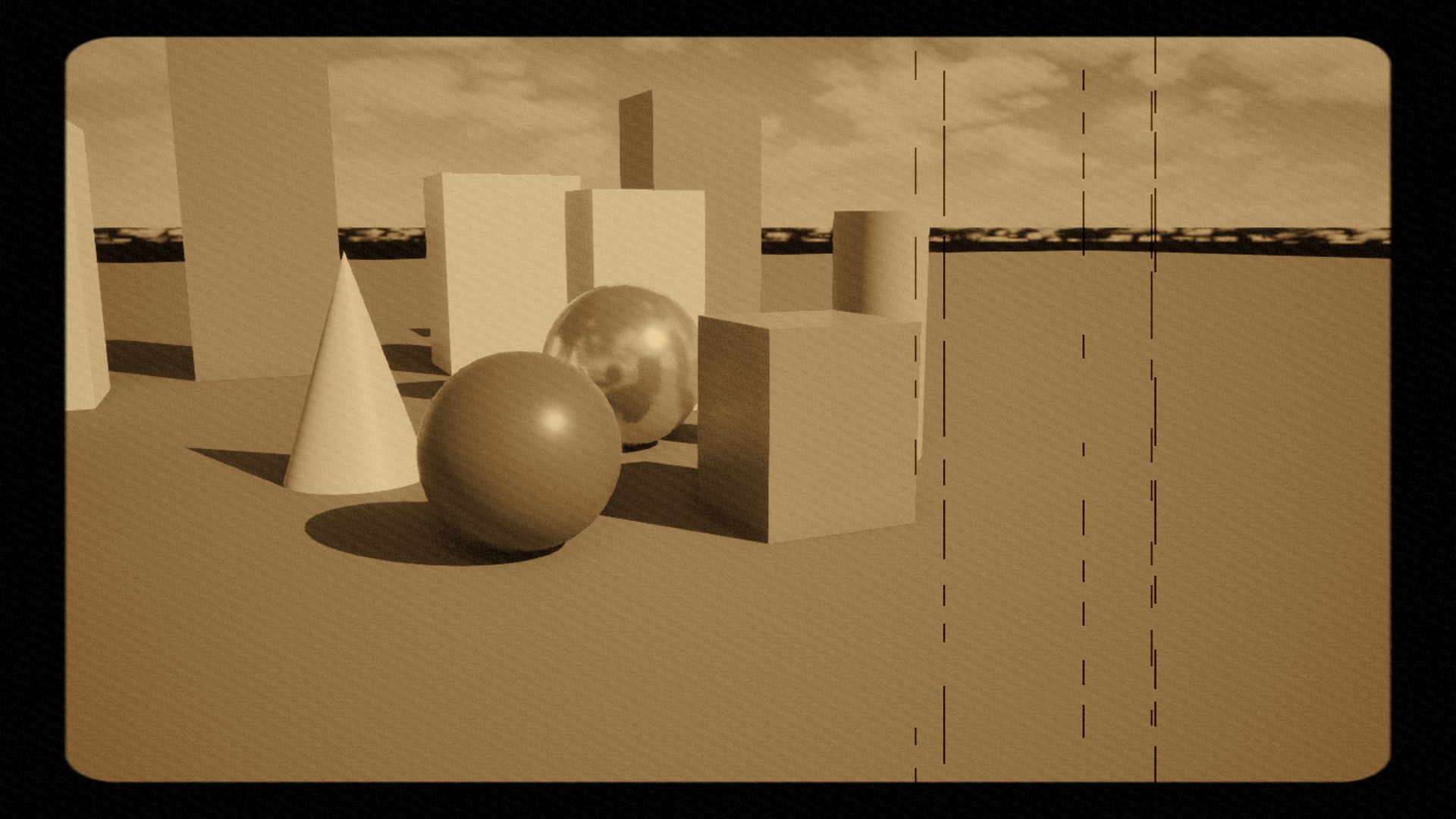

Damaged Archive — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_SepiaArchive
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Palette_Midpoint | Scalar | 0.5 |
| FilmDamage_Scratches | Scalar | 0.45 |
| FilmDamage_Dust | Scalar | 0.8 |
| FilmDamage_Flicker | Scalar | 0.12 |
| FilmGate_Inset | Scalar | 0.045 |
| FilmGate_Corner | Scalar | 0.035 |
| FilmGate_Perforations | Scalar | 0 |
| Grain_Amount | Scalar | 0.08 |
| Grain_Scale | Scalar | 1 |
| Grain_Animate | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.06, 0.035, 0.018, 1 |
| Palette_Midtones | Vector (RGBA) | 0.52, 0.38, 0.2, 1 |
| Palette_Highlights | Vector (RGBA) | 0.95, 0.85, 0.64, 1 |

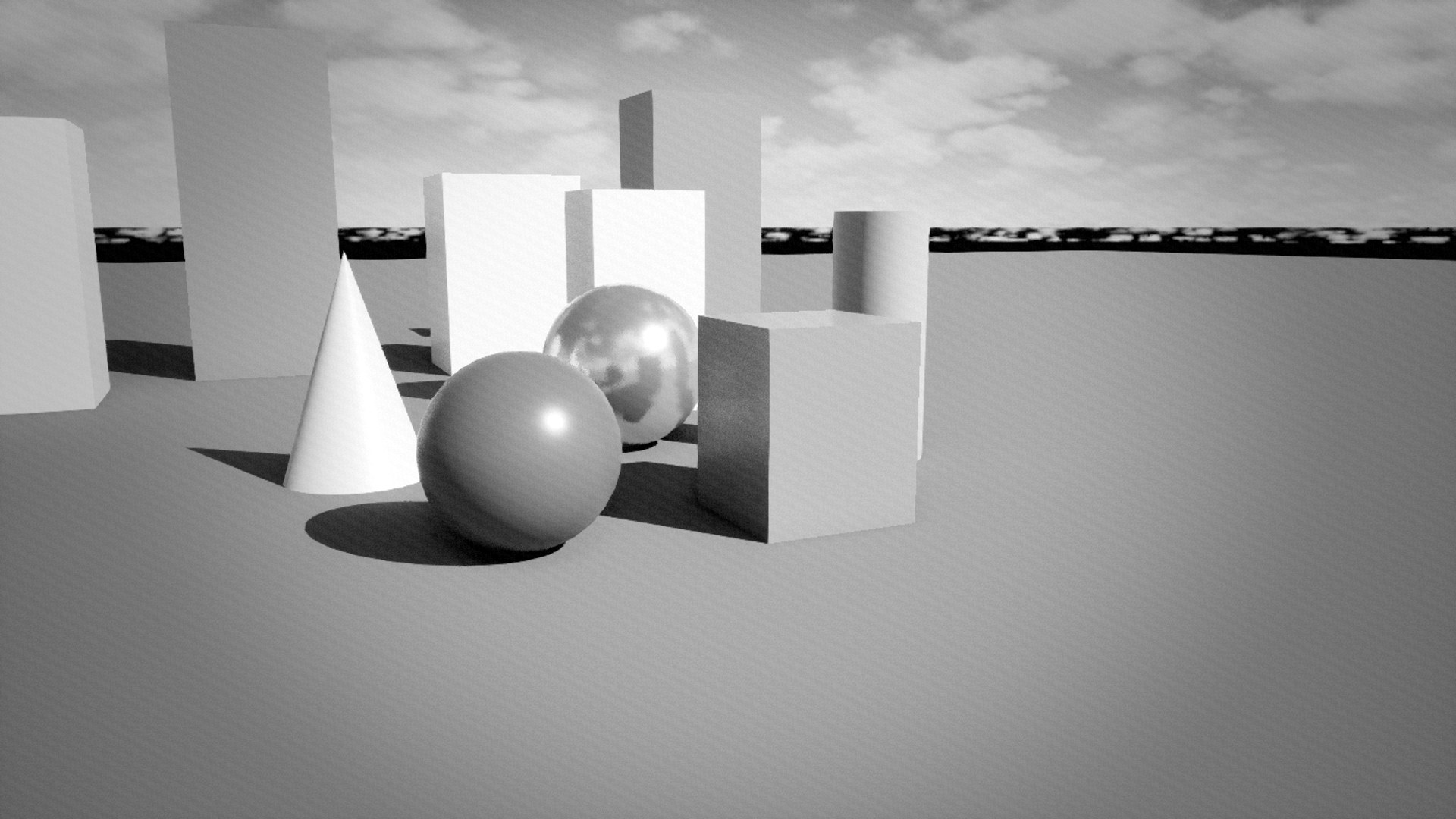

Silver Gelatin — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_SilverGelatin
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Grade_Saturation | Scalar | 0 |
| Grade_Contrast | Scalar | 1.22 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1.05 |
| Grain_Amount | Scalar | 0.075 |
| Grain_Scale | Scalar | 1 |
| Grain_Animate | Scalar | 1 |
| Vignette_Amount | Scalar | 0.2 |
| Vignette_Roundness | Scalar | 0.65 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |

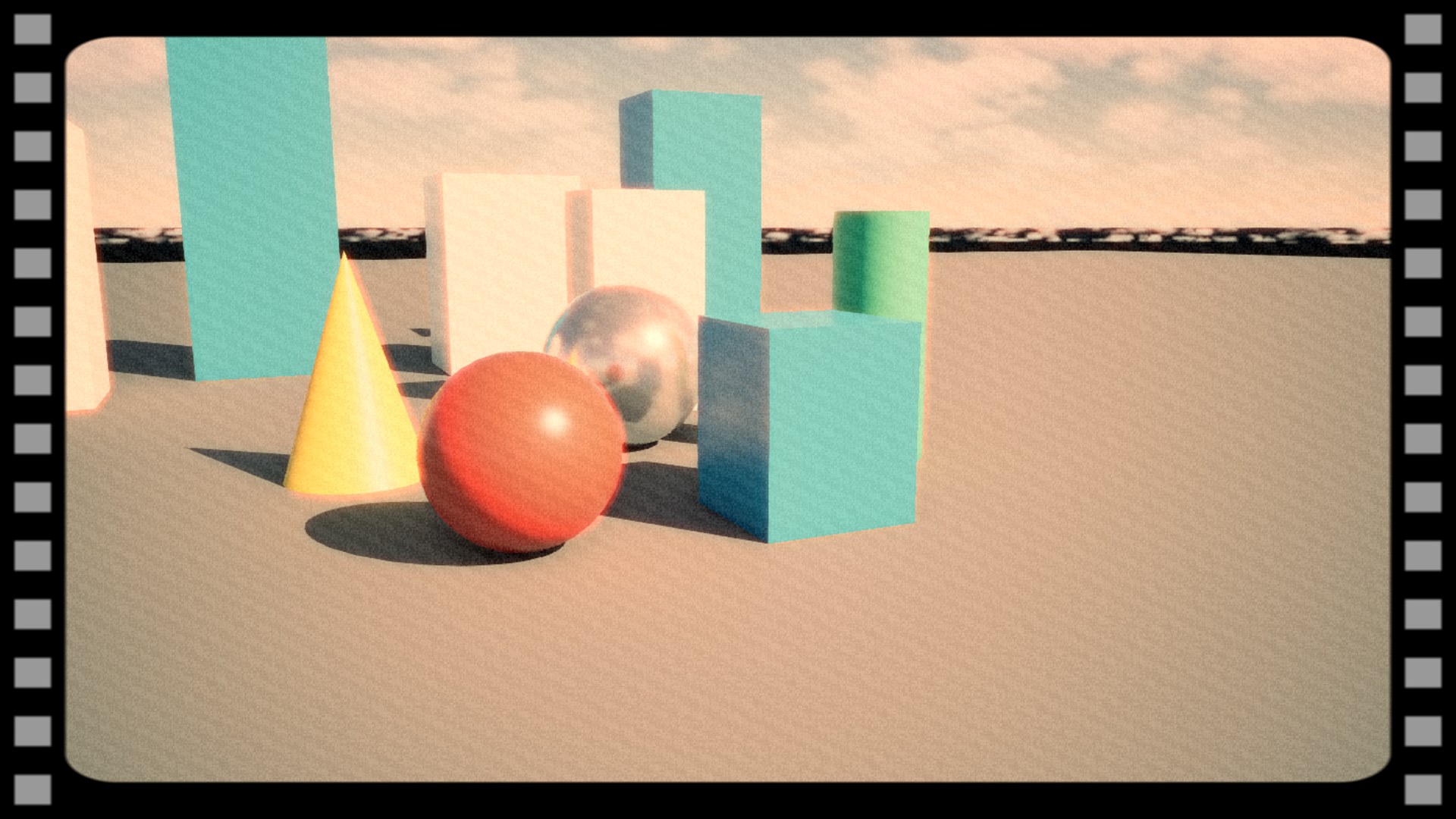

Super 8 Halation — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_Super8
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 1.4 |
| Grade_Saturation | Scalar | 0.78 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1.15 |
| Halation_Radius | Scalar | 9 |
| Halation_Amount | Scalar | 2.5 |
| Halation_Threshold | Scalar | 0.5 |
| Grain_Amount | Scalar | 0.11 |
| Grain_Scale | Scalar | 1.5 |
| Grain_Animate | Scalar | 1 |
| FilmGate_Inset | Scalar | 0.045 |
| FilmGate_Corner | Scalar | 0.035 |
| FilmGate_Perforations | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1.04, 0.99, 0.85, 1 |
| Halation_Tint | Vector (RGBA) | 1, 0.18, 0.035, 1 |

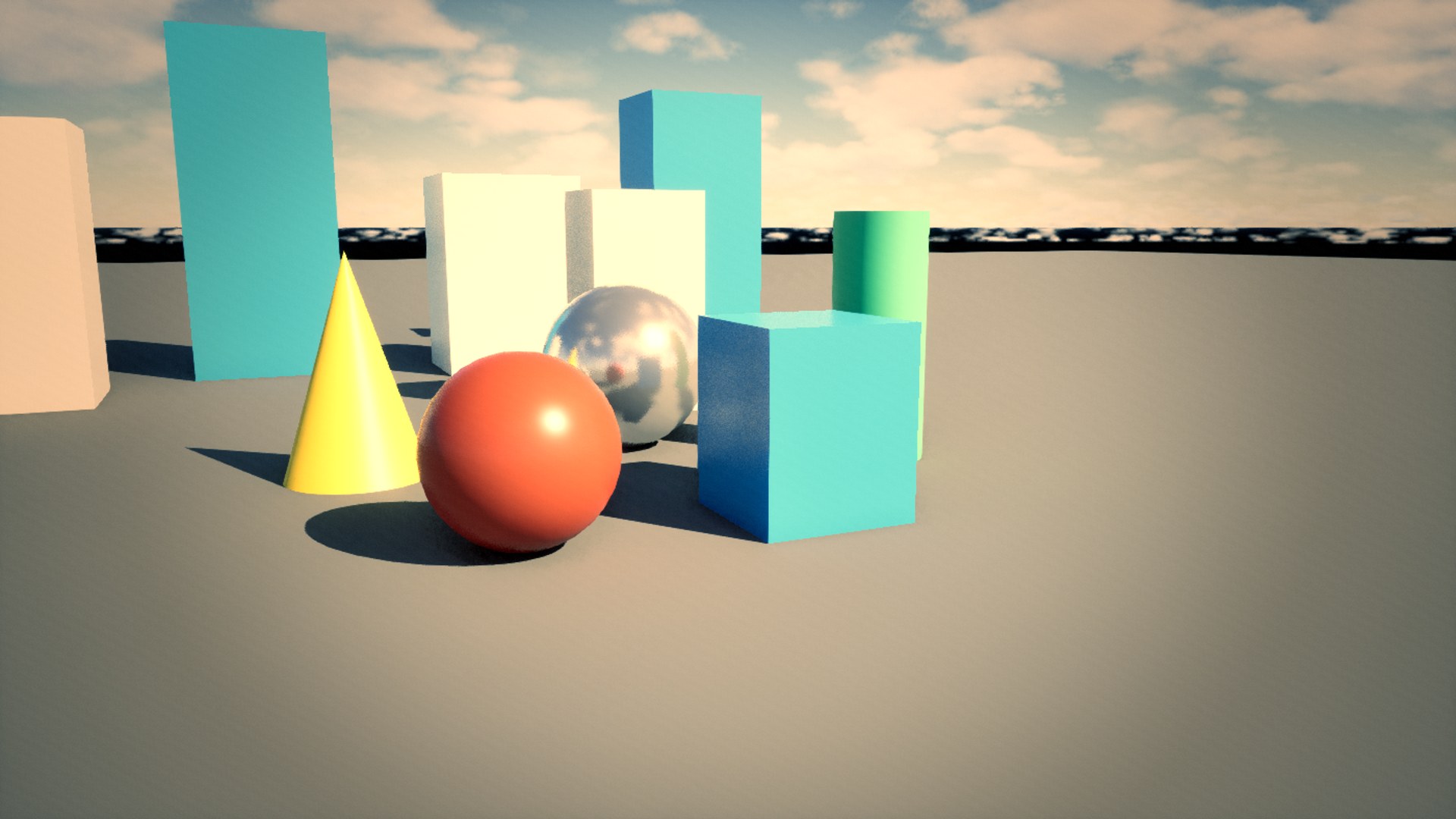

Teal / Amber — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_TealOrange
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Grade_Saturation | Scalar | 0.9 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| SplitTone_Amount | Scalar | 0.65 |
| Vignette_Amount | Scalar | 0.22 |
| Vignette_Roundness | Scalar | 0.65 |
| Grain_Amount | Scalar | 0.025 |
| Grain_Scale | Scalar | 1 |
| Grain_Animate | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |
| SplitTone_Shadows | Vector (RGBA) | 0.05, 0.38, 0.45, 1 |
| SplitTone_Highlights | Vector (RGBA) | 1, 0.63, 0.3, 1 |
Three Strip Color — Film
Grade and texture the rendered image with a photographic or optical treatment.
/ArtOfShaderUltimatePostProcess/Looks/Film/Instances/MI_PP_Technicolor
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Technicolor_Amount | Scalar | 0.9 |
| Grade_Saturation | Scalar | 1.18 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Grain_Amount | Scalar | 0.03 |
| Grain_Scale | Scalar | 1 |
| Grain_Animate | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |

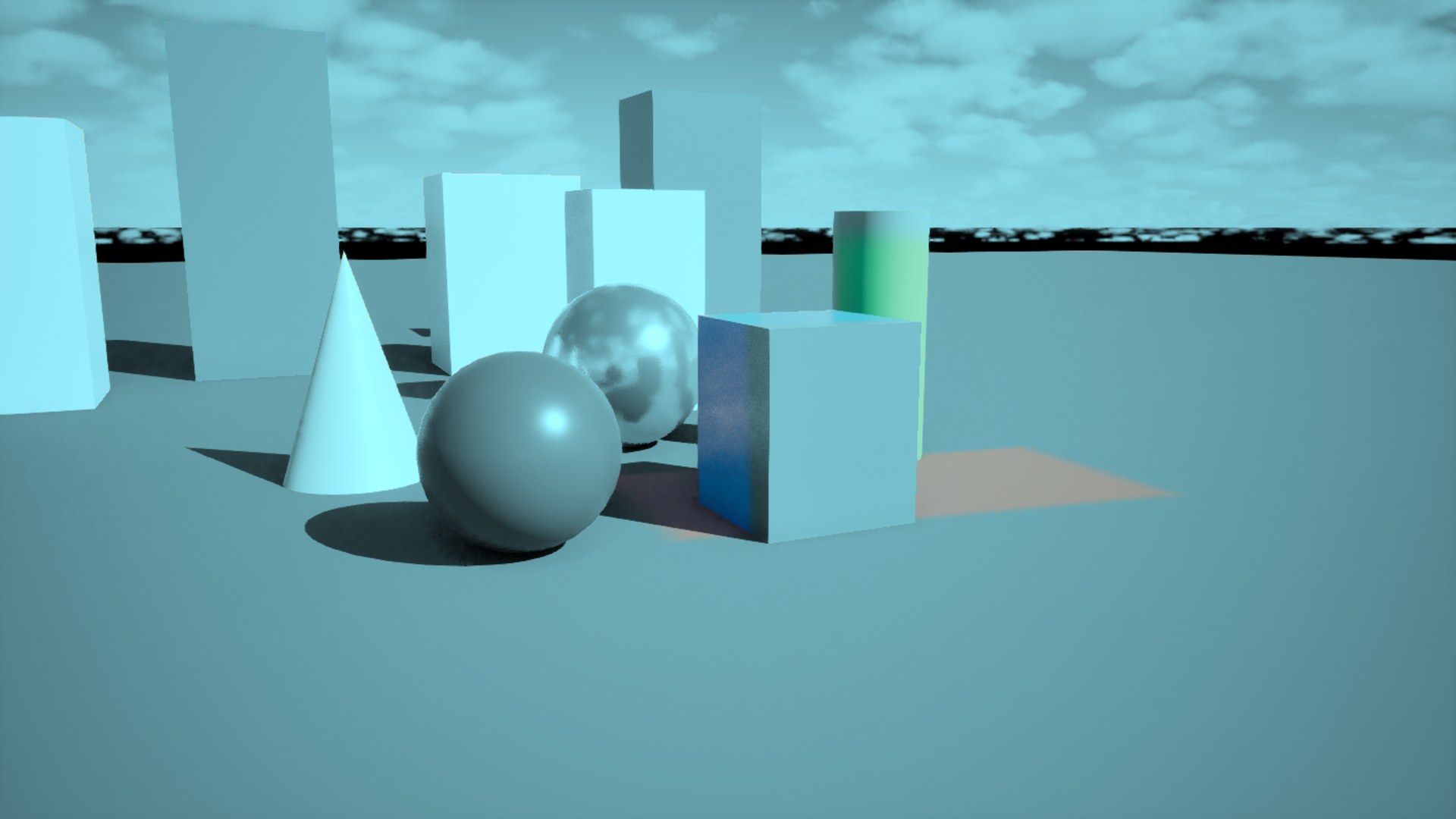

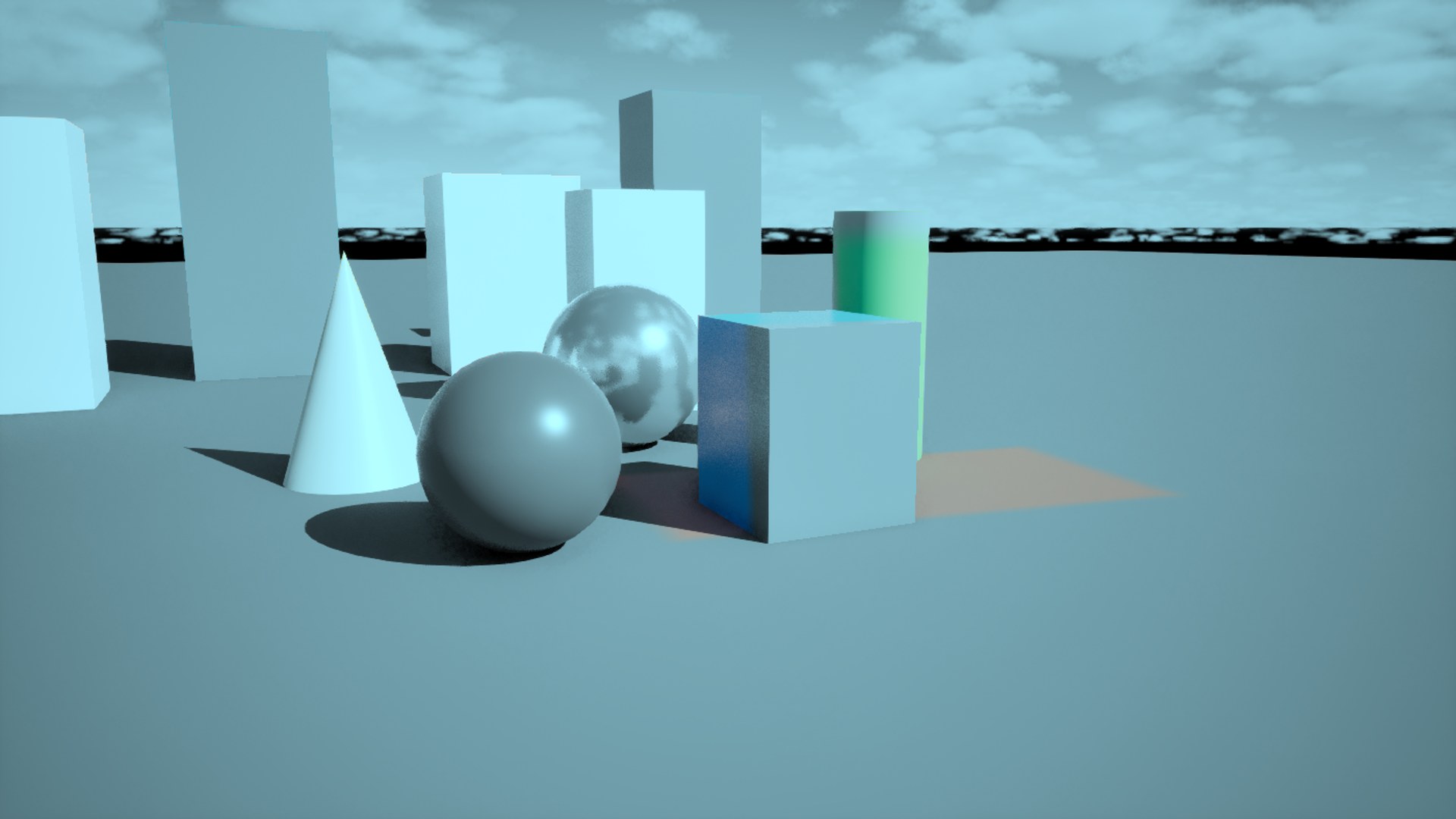

Oriented Box Exclude — Localized
Include or exclude visible surfaces with a configurable world-space or object-stencil mask.
/ArtOfShaderUltimatePostProcess/Looks/Localized/Instances/MI_PP_BoxExclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 1 |
| Local_Mode | Scalar | 1 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | -150 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Local_Center | Vector (RGBA) | 4948.9, -7211.7, 180, 1 |
| Local_Extents | Vector (RGBA) | 155, 220, 210, 1 |
| Grade_Tint | Vector (RGBA) | 0.72, 1.02, 1.1, 1 |

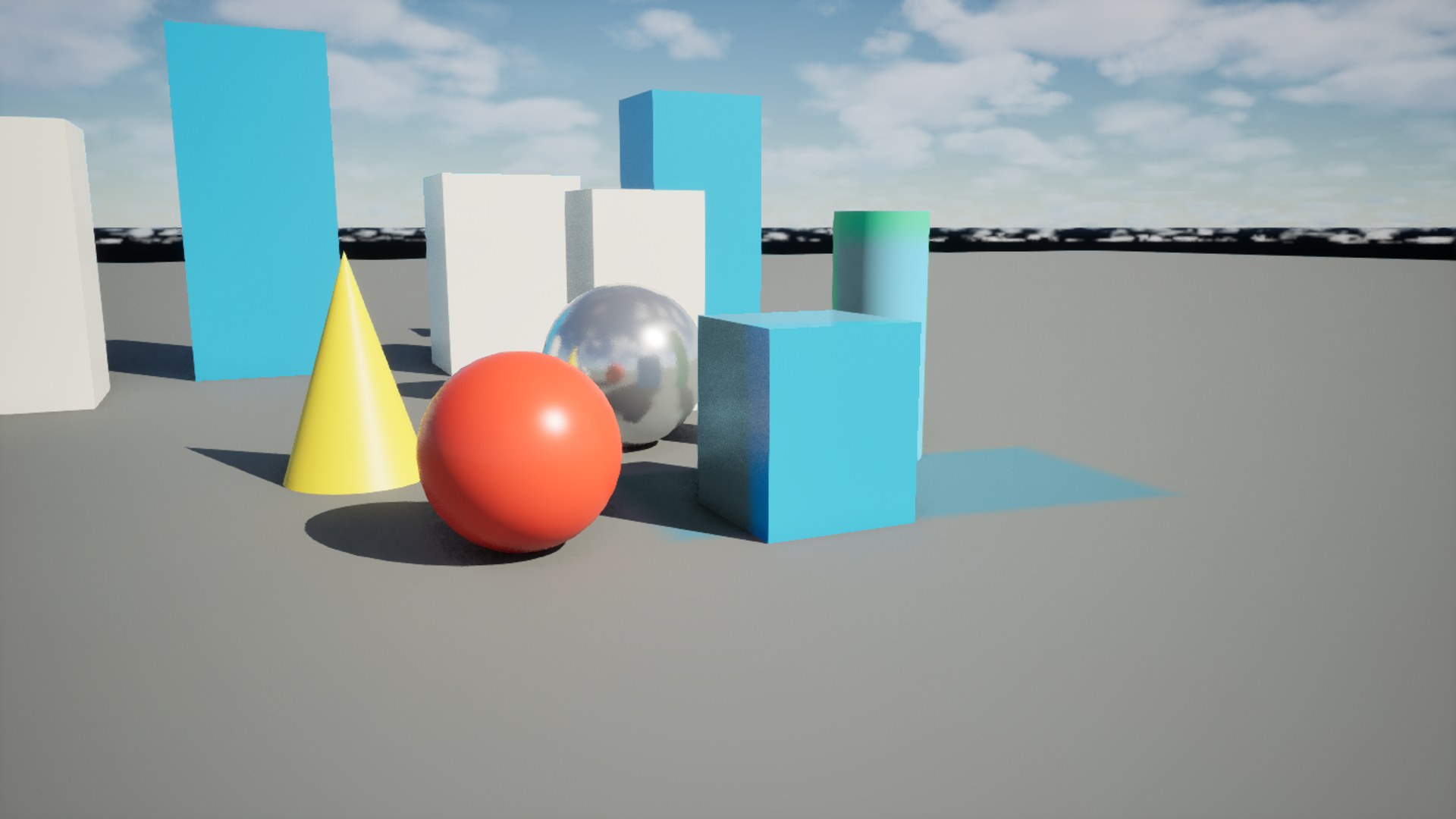

Oriented Box Include — Localized
Include or exclude visible surfaces with a configurable world-space or object-stencil mask.
/ArtOfShaderUltimatePostProcess/Looks/Localized/Instances/MI_PP_BoxInclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 1 |
| Local_Mode | Scalar | 0 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | 30 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Local_Center | Vector (RGBA) | 3771.1, -7891.7, 180, 1 |
| Local_Extents | Vector (RGBA) | 155, 220, 210, 1 |
| Grade_Tint | Vector (RGBA) | 0.72, 1.02, 1.1, 1 |

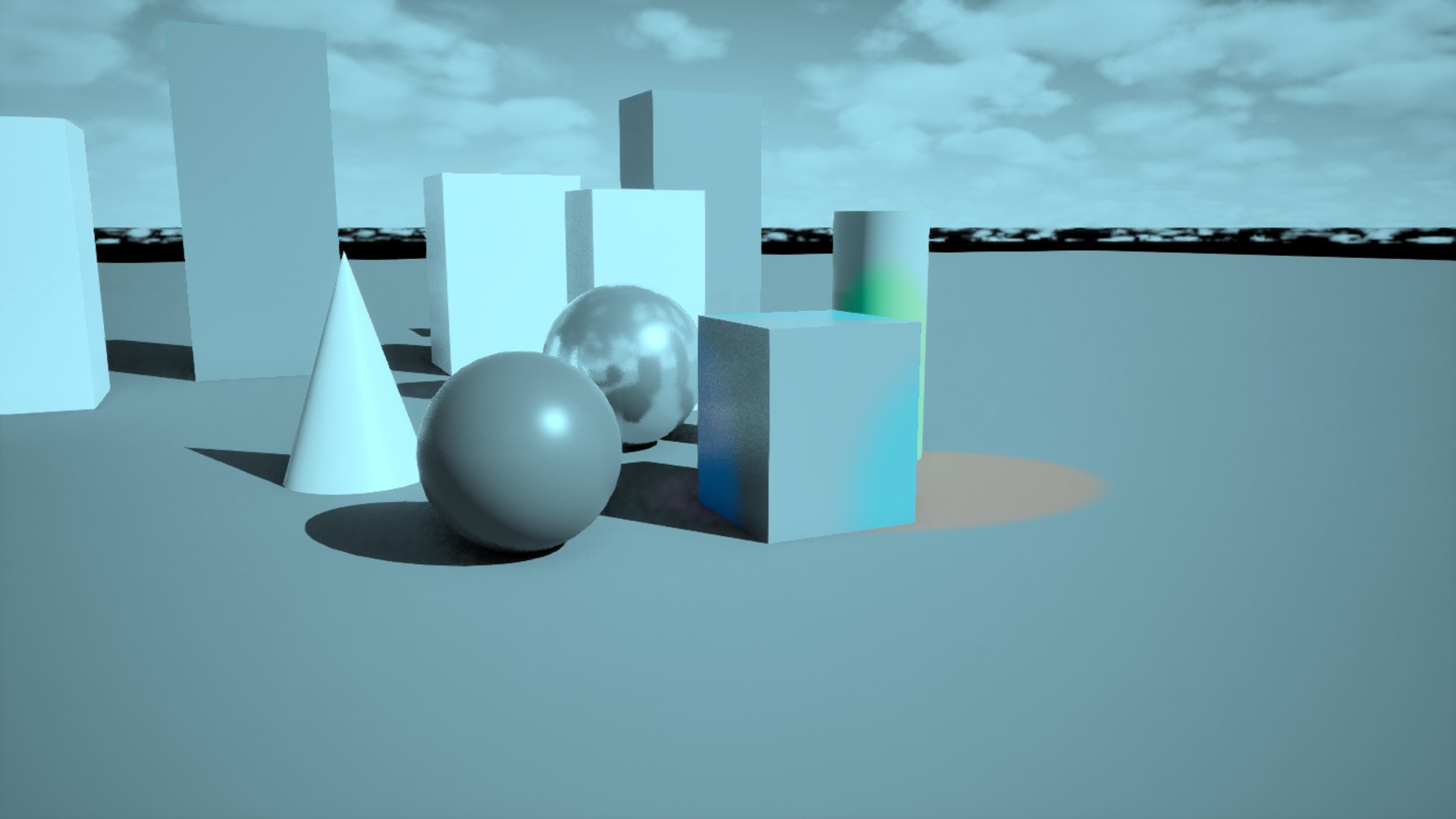

Sphere Exclude — Localized
Include or exclude visible surfaces with a configurable world-space or object-stencil mask.
/ArtOfShaderUltimatePostProcess/Looks/Localized/Instances/MI_PP_SphereExclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 0 |
| Local_Mode | Scalar | 1 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | -150 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Local_Center | Vector (RGBA) | 4448.9, -6345.7, 180, 1 |
| Local_Extents | Vector (RGBA) | 155, 220, 210, 1 |
| Grade_Tint | Vector (RGBA) | 0.72, 1.02, 1.1, 1 |
Sphere Include — Localized
Include or exclude visible surfaces with a configurable world-space or object-stencil mask.
/ArtOfShaderUltimatePostProcess/Looks/Localized/Instances/MI_PP_SphereInclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 0 |
| Local_Mode | Scalar | 0 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 1 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | 30 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Local_Center | Vector (RGBA) | 3271.1, -7025.7, 180, 1 |
| Local_Extents | Vector (RGBA) | 155, 220, 210, 1 |
| Grade_Tint | Vector (RGBA) | 0.72, 1.02, 1.1, 1 |

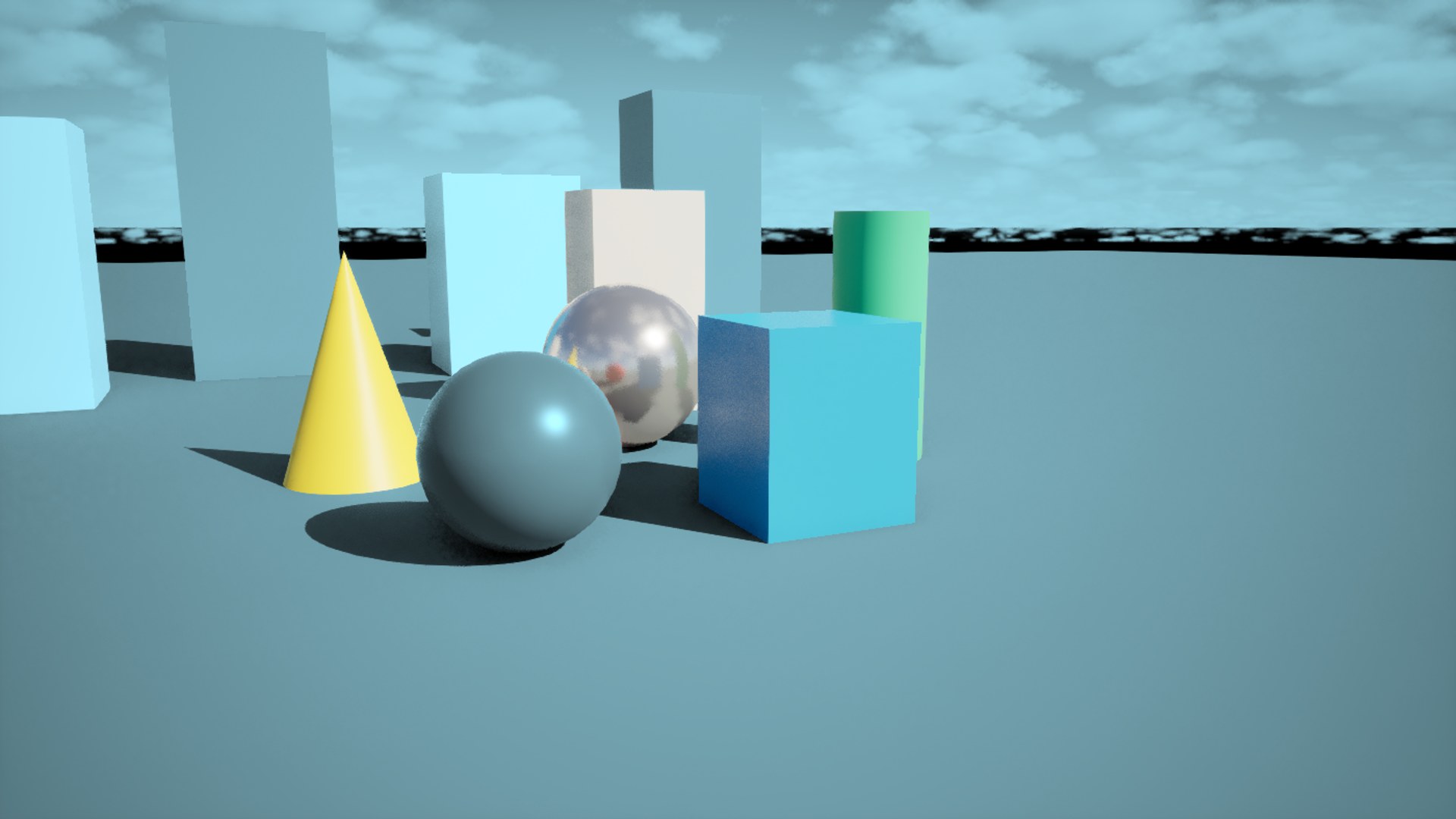

Object Stencil Exclude — Localized
Include or exclude visible surfaces with a configurable world-space or object-stencil mask.
/ArtOfShaderUltimatePostProcess/Looks/Localized/Instances/MI_PP_StencilExclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 2 |
| Local_Mode | Scalar | 1 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | -150 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Local_Center | Vector (RGBA) | 5448.9, -8077.8, 180, 1 |
| Local_Extents | Vector (RGBA) | 155, 220, 210, 1 |
| Grade_Tint | Vector (RGBA) | 0.72, 1.02, 1.1, 1 |

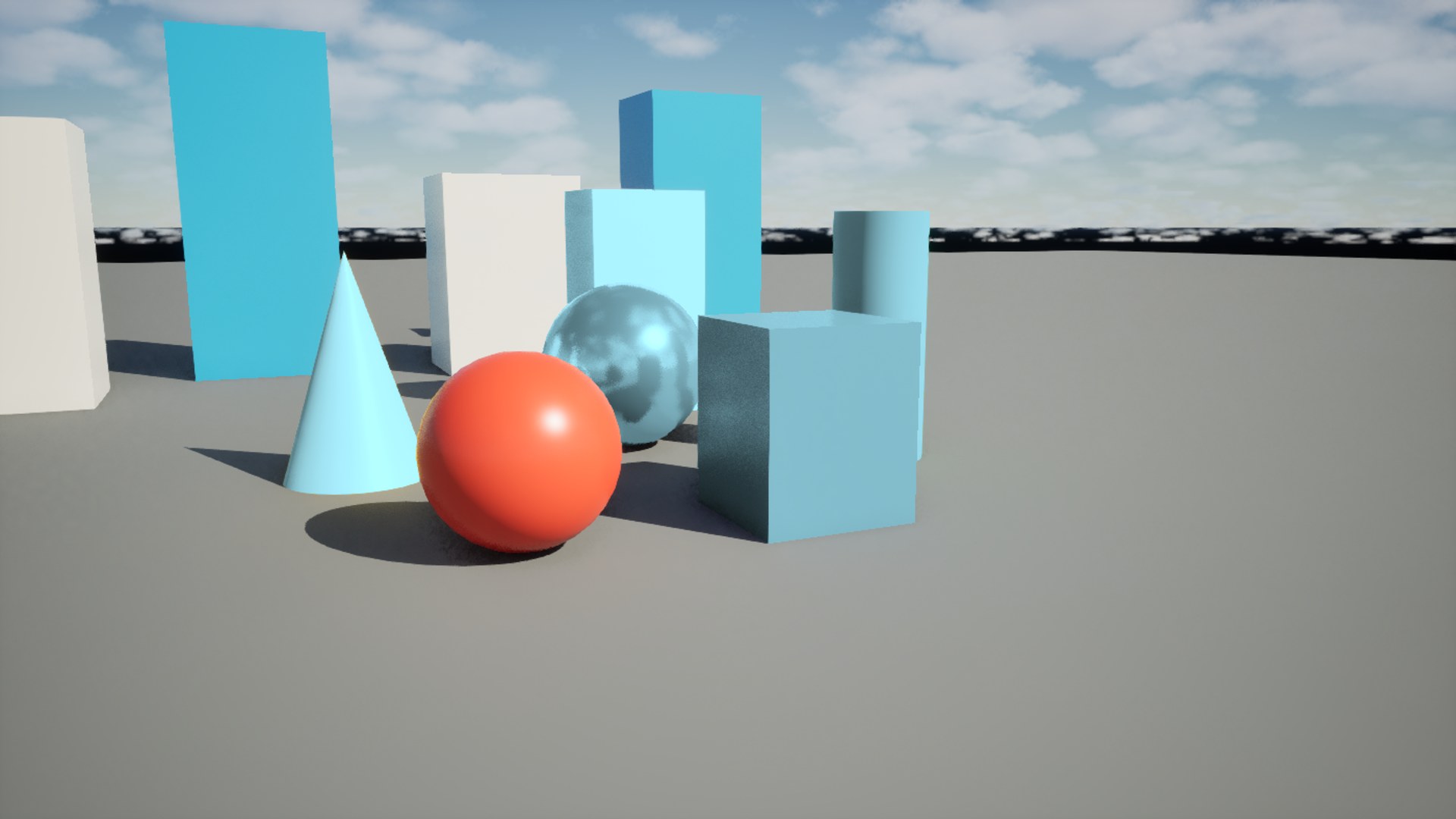

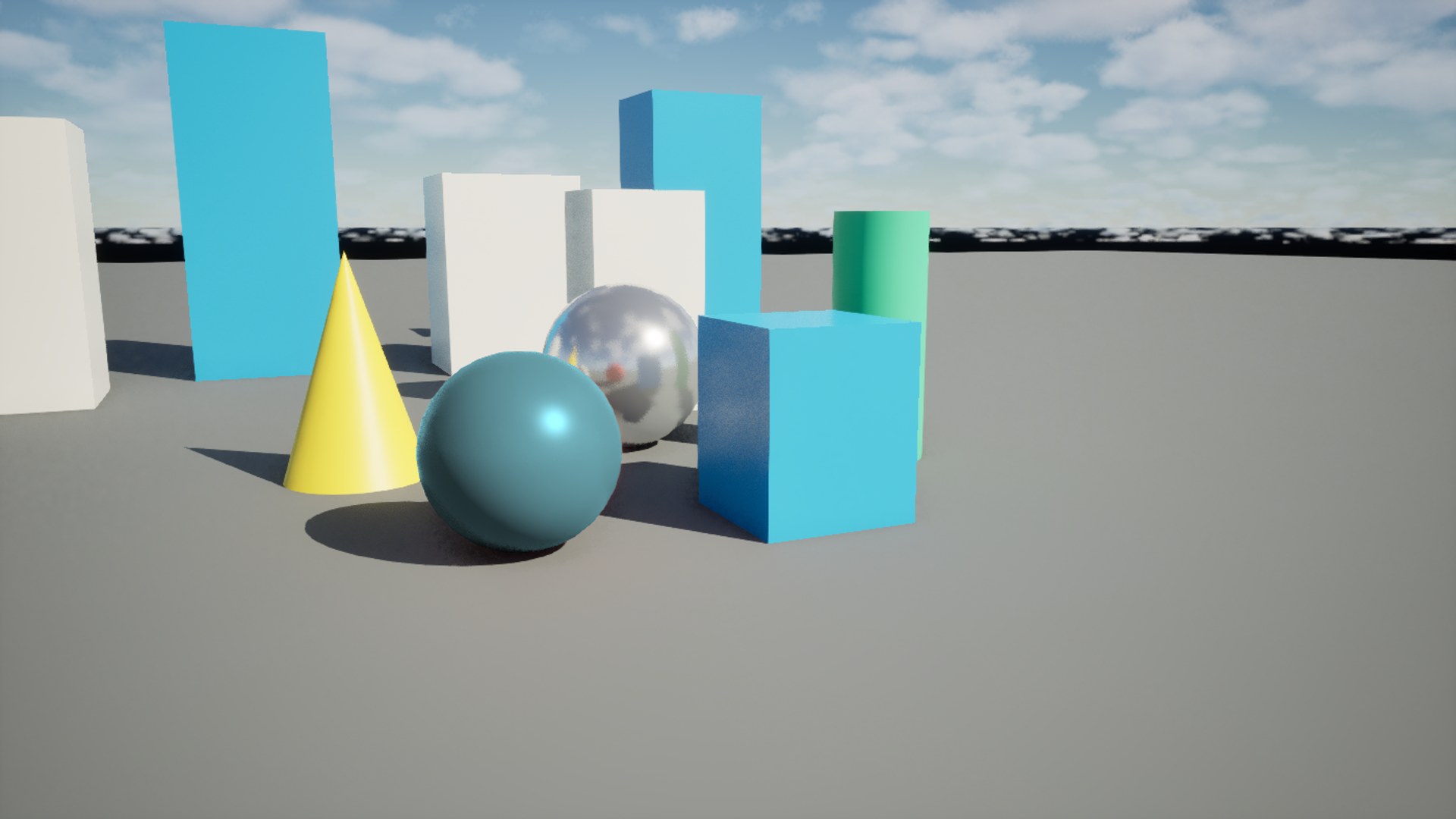

Object Stencil Include — Localized
Include or exclude visible surfaces with a configurable world-space or object-stencil mask.
/ArtOfShaderUltimatePostProcess/Looks/Localized/Instances/MI_PP_StencilInclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 2 |
| Local_Mode | Scalar | 0 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | 30 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Local_Center | Vector (RGBA) | 4271.1, -8757.8, 180, 1 |
| Local_Extents | Vector (RGBA) | 155, 220, 210, 1 |
| Grade_Tint | Vector (RGBA) | 0.72, 1.02, 1.1, 1 |
Object Box Exclude — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ObjectBoxExclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | -4948.9 |
| Local_CenterY | Scalar | 7211.7 |
| Local_CenterZ | Scalar | 180 |
| Local_ExtentsX | Scalar | 155 |
| Local_ExtentsY | Scalar | 220 |
| Local_ExtentsZ | Scalar | 210 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 1 |
| Local_Mode | Scalar | 1 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | 30 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 0.65, 1.03, 1.1, 1 |
Object Box Include — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ObjectBoxInclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | -3771.1 |
| Local_CenterY | Scalar | 7891.7 |
| Local_CenterZ | Scalar | 180 |
| Local_ExtentsX | Scalar | 155 |
| Local_ExtentsY | Scalar | 220 |
| Local_ExtentsZ | Scalar | 210 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 1 |
| Local_Mode | Scalar | 0 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | 210 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 0.65, 1.03, 1.1, 1 |
Object Sphere Exclude — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ObjectSphereExclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | -4448.9 |
| Local_CenterY | Scalar | 6345.7 |
| Local_CenterZ | Scalar | 180 |
| Local_ExtentsX | Scalar | 155 |
| Local_ExtentsY | Scalar | 220 |
| Local_ExtentsZ | Scalar | 210 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 0 |
| Local_Mode | Scalar | 1 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | 30 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 0.65, 1.03, 1.1, 1 |
Object Sphere Include — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ObjectSphereInclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | -3271.1 |
| Local_CenterY | Scalar | 7025.7 |
| Local_CenterZ | Scalar | 180 |
| Local_ExtentsX | Scalar | 155 |
| Local_ExtentsY | Scalar | 220 |
| Local_ExtentsZ | Scalar | 210 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 0 |
| Local_Mode | Scalar | 0 |
| Local_StencilID | Scalar | 1 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | 210 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 0.65, 1.03, 1.1, 1 |
Object Stencil Exclude — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ObjectStencilExclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | -5448.9 |
| Local_CenterY | Scalar | 8077.8 |
| Local_CenterZ | Scalar | 180 |
| Local_ExtentsX | Scalar | 155 |
| Local_ExtentsY | Scalar | 220 |
| Local_ExtentsZ | Scalar | 210 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 2 |
| Local_Mode | Scalar | 1 |
| Local_StencilID | Scalar | 2 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | 30 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 0.65, 1.03, 1.1, 1 |
Object Stencil Include — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ObjectStencilInclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | -4271.1 |
| Local_CenterY | Scalar | 8757.8 |
| Local_CenterZ | Scalar | 180 |
| Local_ExtentsX | Scalar | 155 |
| Local_ExtentsY | Scalar | 220 |
| Local_ExtentsZ | Scalar | 210 |
| Local_Radius | Scalar | 205 |
| Local_Feather | Scalar | 35 |
| Local_Shape | Scalar | 2 |
| Local_Mode | Scalar | 0 |
| Local_StencilID | Scalar | 2 |
| Local_IncludeStencil | Scalar | 0 |
| Local_IncludeID | Scalar | 1 |
| Local_ExcludeStencil | Scalar | 0 |
| Local_ExcludeID | Scalar | 2 |
| Local_Yaw | Scalar | 210 |
| Grade_Saturation | Scalar | 0.02 |
| Grade_Contrast | Scalar | 1.12 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 0.65, 1.03, 1.1, 1 |

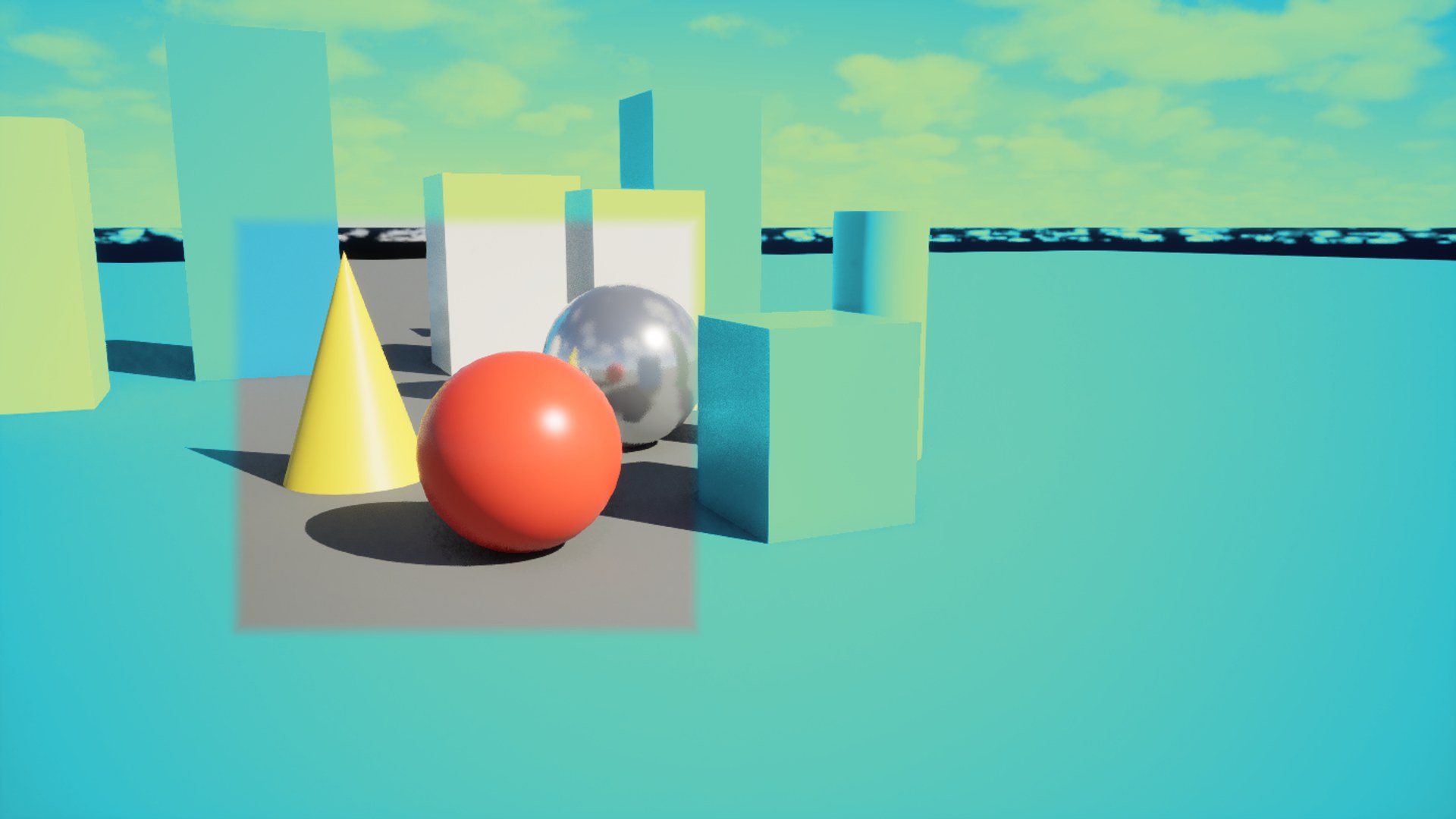

Screen Box Exclude — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ScreenBoxExclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | 0.5 |
| Local_CenterY | Scalar | 0.5 |
| Local_Radius | Scalar | 0.28 |
| Local_HalfWidth | Scalar | 0.28 |
| Local_HalfHeight | Scalar | 0.25 |
| Local_Feather | Scalar | 0.025 |
| Local_Angle | Scalar | 0 |
| Local_Shape | Scalar | 1 |
| Local_Mode | Scalar | 1 |
| Palette_Midpoint | Scalar | 0.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.03, 0.04, 0.13, 1 |
| Palette_Midtones | Vector (RGBA) | 0.2, 0.75, 0.8, 1 |
| Palette_Highlights | Vector (RGBA) | 1, 0.92, 0.45, 1 |

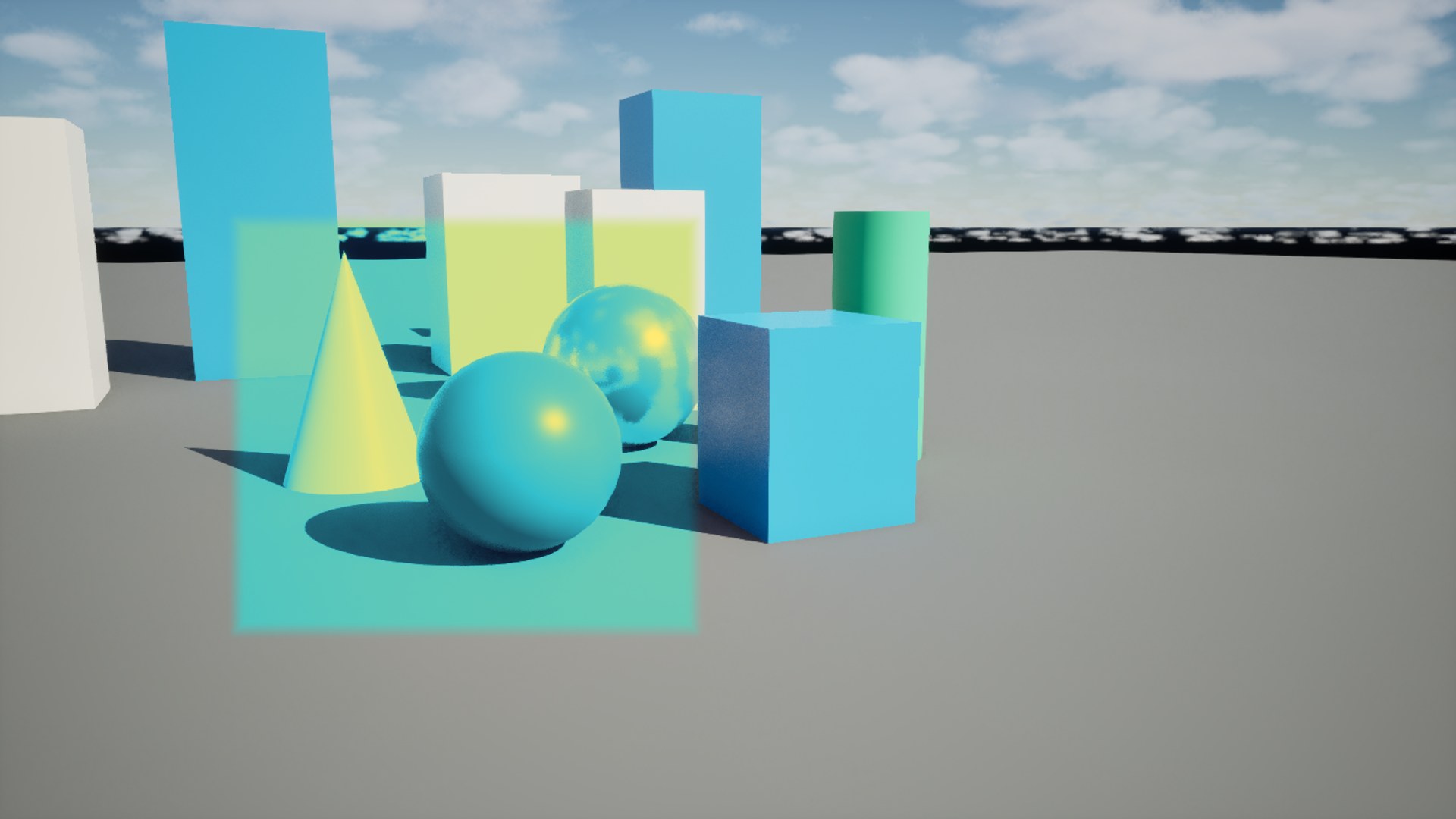

Screen Box Include — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ScreenBoxInclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | 0.5 |
| Local_CenterY | Scalar | 0.5 |
| Local_Radius | Scalar | 0.28 |
| Local_HalfWidth | Scalar | 0.28 |
| Local_HalfHeight | Scalar | 0.25 |
| Local_Feather | Scalar | 0.025 |
| Local_Angle | Scalar | 0 |
| Local_Shape | Scalar | 1 |
| Local_Mode | Scalar | 0 |
| Palette_Midpoint | Scalar | 0.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.03, 0.04, 0.13, 1 |
| Palette_Midtones | Vector (RGBA) | 0.2, 0.75, 0.8, 1 |
| Palette_Highlights | Vector (RGBA) | 1, 0.92, 0.45, 1 |

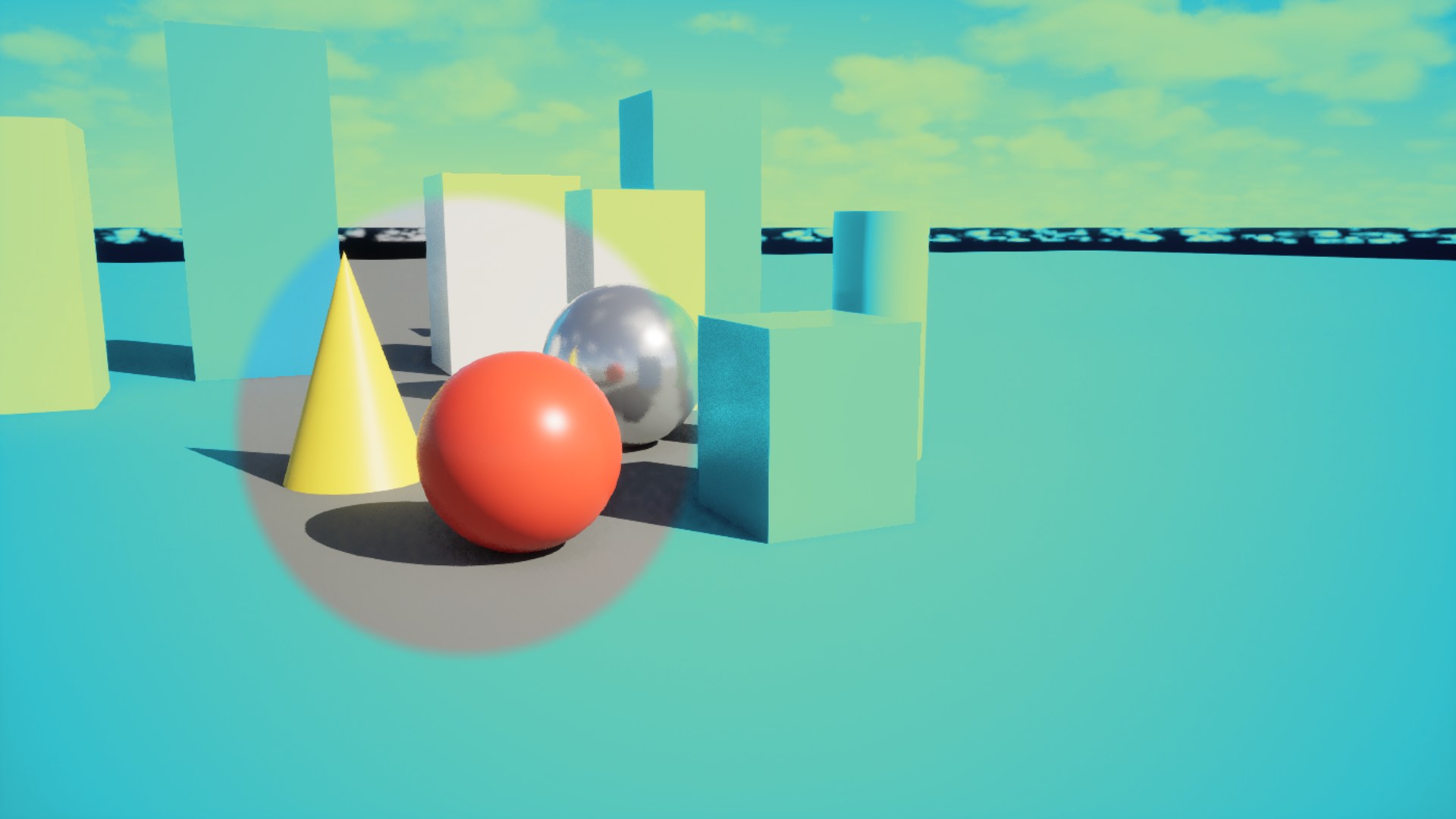

Screen Circle Exclude — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ScreenCircleExclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | 0.5 |
| Local_CenterY | Scalar | 0.5 |
| Local_Radius | Scalar | 0.28 |
| Local_HalfWidth | Scalar | 0.28 |
| Local_HalfHeight | Scalar | 0.25 |
| Local_Feather | Scalar | 0.025 |
| Local_Angle | Scalar | 0 |
| Local_Shape | Scalar | 0 |
| Local_Mode | Scalar | 1 |
| Palette_Midpoint | Scalar | 0.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.03, 0.04, 0.13, 1 |
| Palette_Midtones | Vector (RGBA) | 0.2, 0.75, 0.8, 1 |
| Palette_Highlights | Vector (RGBA) | 1, 0.92, 0.45, 1 |
Screen Circle Include — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ScreenCircleInclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | 0.5 |
| Local_CenterY | Scalar | 0.5 |
| Local_Radius | Scalar | 0.28 |
| Local_HalfWidth | Scalar | 0.28 |
| Local_HalfHeight | Scalar | 0.25 |
| Local_Feather | Scalar | 0.025 |
| Local_Angle | Scalar | 0 |
| Local_Shape | Scalar | 0 |
| Local_Mode | Scalar | 0 |
| Palette_Midpoint | Scalar | 0.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.03, 0.04, 0.13, 1 |
| Palette_Midtones | Vector (RGBA) | 0.2, 0.75, 0.8, 1 |
| Palette_Highlights | Vector (RGBA) | 1, 0.92, 0.45, 1 |

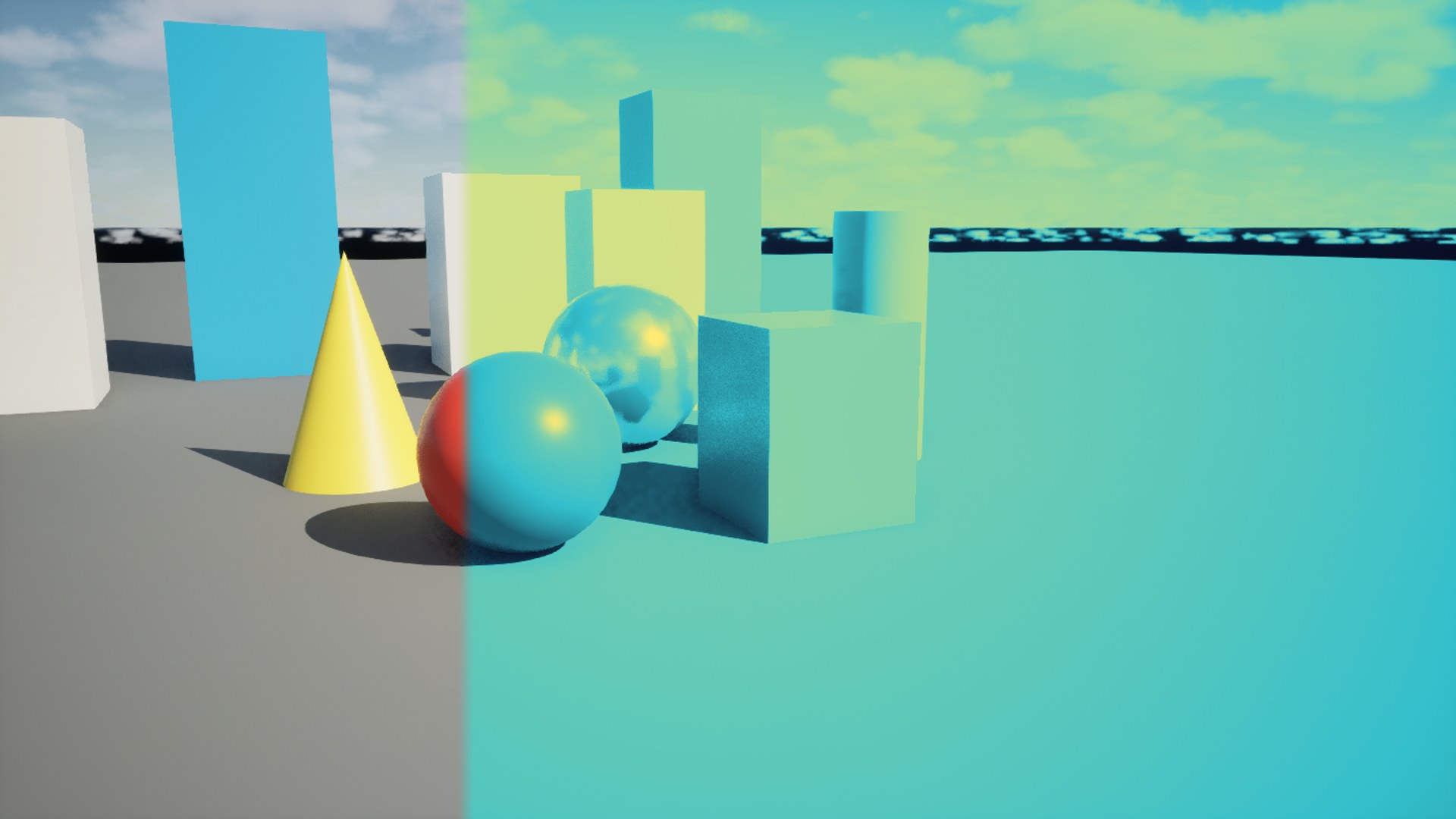

Screen Wipe Exclude — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ScreenWipeExclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | 0.5 |
| Local_CenterY | Scalar | 0.5 |
| Local_Radius | Scalar | 0.28 |
| Local_HalfWidth | Scalar | 0.28 |
| Local_HalfHeight | Scalar | 0.25 |
| Local_Feather | Scalar | 0.025 |
| Local_Angle | Scalar | 0 |
| Local_Shape | Scalar | 2 |
| Local_Mode | Scalar | 1 |
| Palette_Midpoint | Scalar | 0.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.03, 0.04, 0.13, 1 |
| Palette_Midtones | Vector (RGBA) | 0.2, 0.75, 0.8, 1 |
| Palette_Highlights | Vector (RGBA) | 1, 0.92, 0.45, 1 |

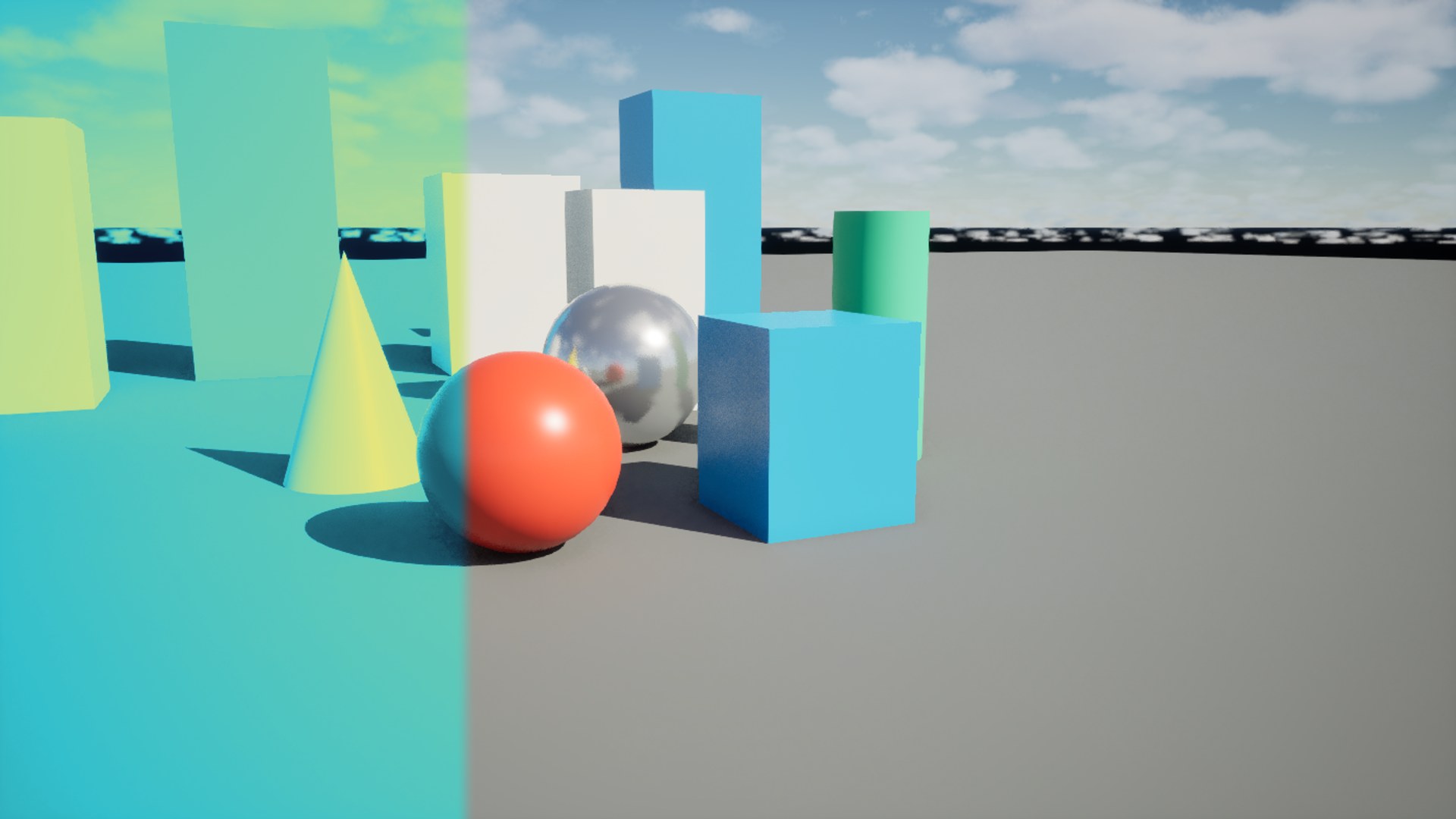

Screen Wipe Include — Object & Screen Masks
A localization preset with scalar controls suitable for Blueprint and runtime UI.
/ArtOfShaderUltimatePostProcess/Looks/LocalizedRuntime/Instances/MI_PP_ScreenWipeInclude
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Local_CenterX | Scalar | 0.5 |
| Local_CenterY | Scalar | 0.5 |
| Local_Radius | Scalar | 0.28 |
| Local_HalfWidth | Scalar | 0.28 |
| Local_HalfHeight | Scalar | 0.25 |
| Local_Feather | Scalar | 0.025 |
| Local_Angle | Scalar | 0 |
| Local_Shape | Scalar | 2 |
| Local_Mode | Scalar | 0 |
| Palette_Midpoint | Scalar | 0.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.03, 0.04, 0.13, 1 |
| Palette_Midtones | Vector (RGBA) | 0.2, 0.75, 0.8, 1 |
| Palette_Highlights | Vector (RGBA) | 1, 0.92, 0.45, 1 |

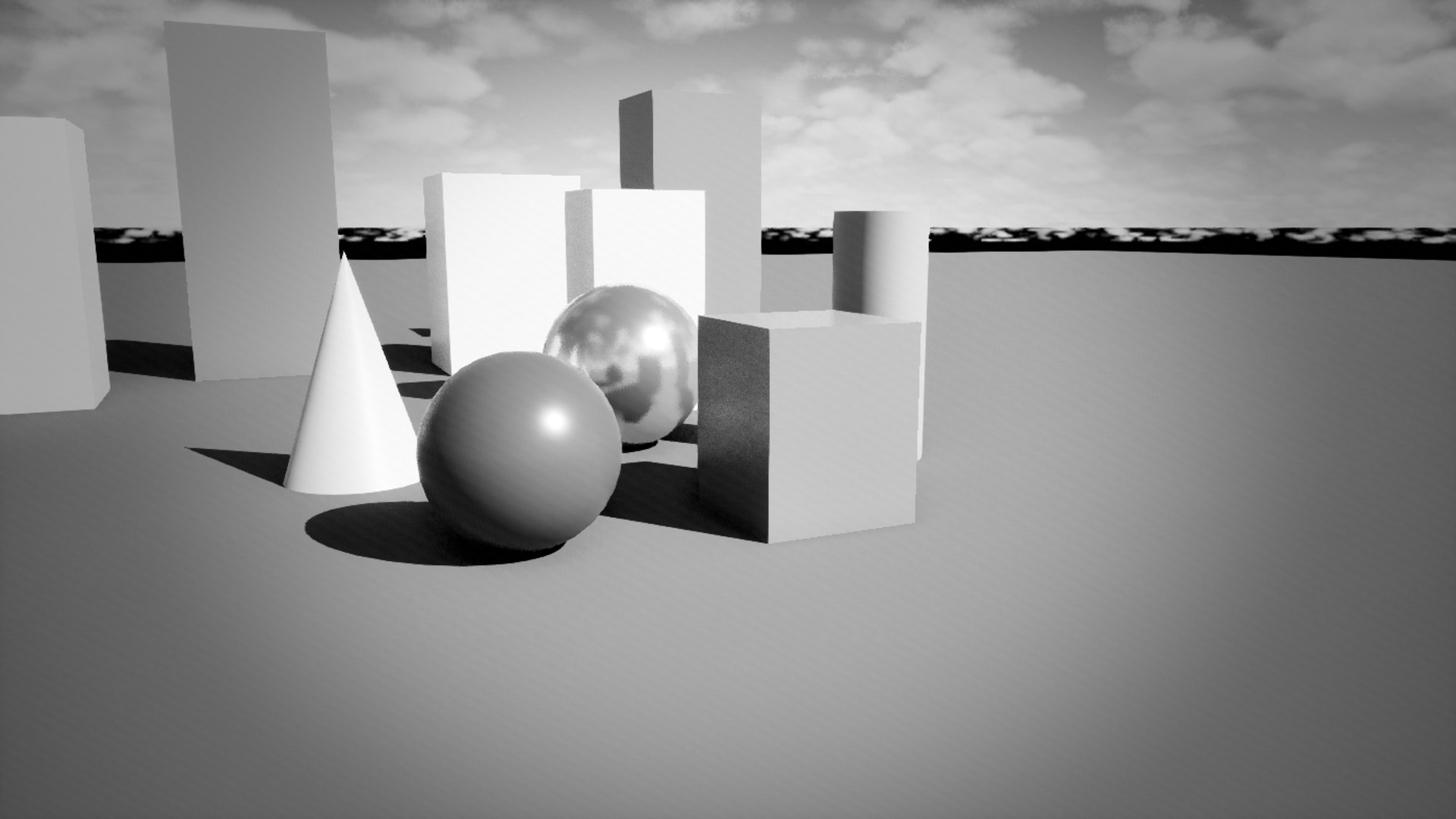

Cinematic Noir — Combined Recipes
A monochrome cinematic recipe with film texture and a shaped vignette.
/ArtOfShaderUltimatePostProcess/Looks/Recipes/Instances/MI_PP_CinematicNoir
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Grade_Saturation | Scalar | 0 |
| Grade_Contrast | Scalar | 1.22 |
| Grade_Lift | Scalar | -0.02 |
| Grade_Gamma | Scalar | 1 |
| Bleach_Amount | Scalar | 0.35 |
| Grain_Amount | Scalar | 0.025 |
| Grain_Scale | Scalar | 1 |
| Grain_Animate | Scalar | 1 |
| Vignette_Amount | Scalar | 0.28 |
| Vignette_Roundness | Scalar | 0.65 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |
Printed Comic — Combined Recipes
Cel bands, ink edges, halftone dots, and paper texture combine into one printed comic look.
/ArtOfShaderUltimatePostProcess/Looks/Recipes/Instances/MI_PP_PrintedComic
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Bands_Steps | Scalar | 5 |
| Bands_Softness | Scalar | 0.04 |
| Halftone_Size | Scalar | 5 |
| Halftone_Amount | Scalar | 0.35 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| Ink_Amount | Scalar | 0.75 |
| Paper_Amount | Scalar | 0.08 |
| Paper_Scale | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Halftone_InkColor | Vector (RGBA) | 0.02, 0.02, 0.03, 1 |
| Ink_InkColor | Vector (RGBA) | 0.008, 0.012, 0.018, 1 |

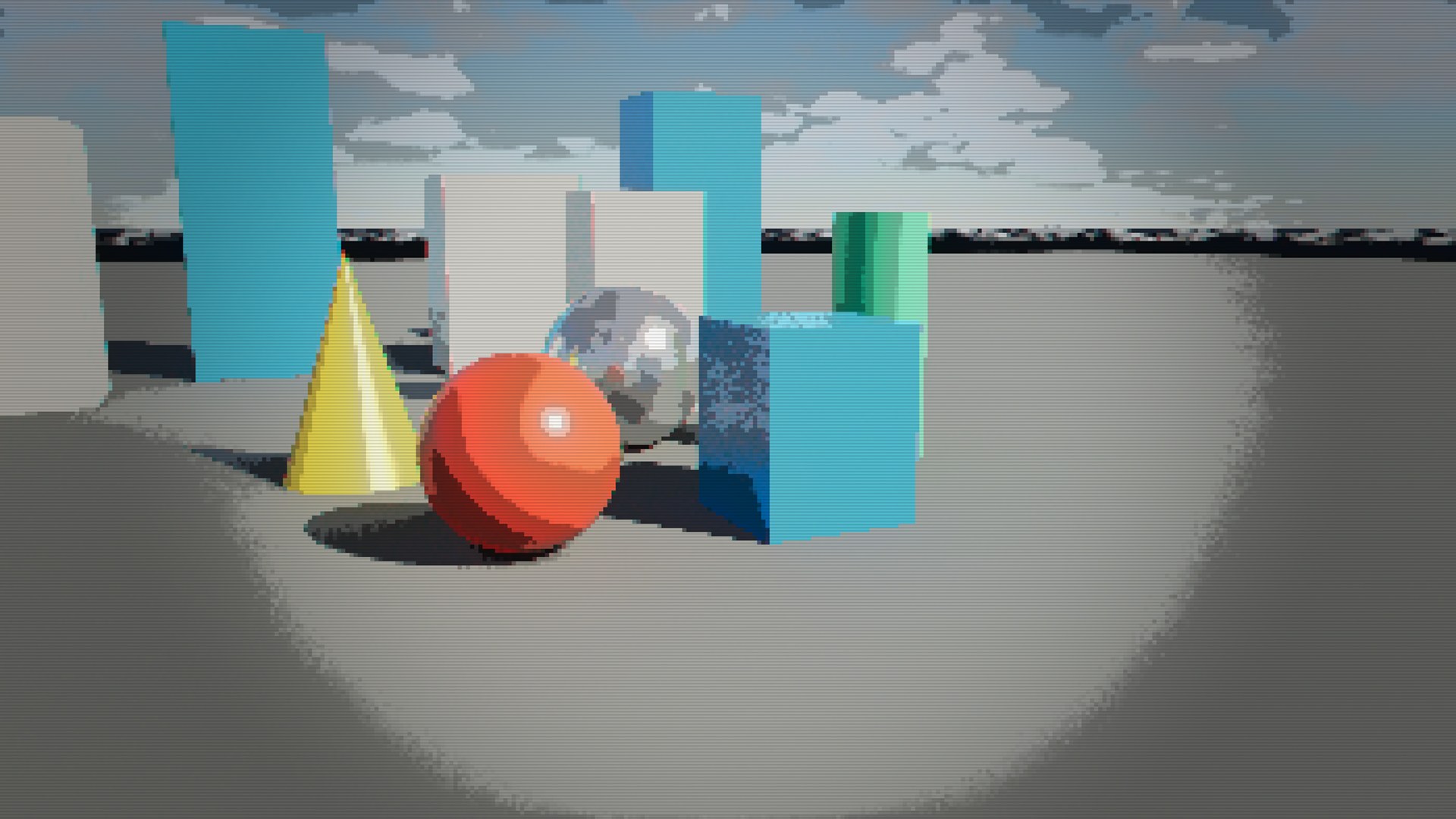

Retro Console — Combined Recipes
Ordered pixel treatment combined with retro display texture.
/ArtOfShaderUltimatePostProcess/Looks/Recipes/Instances/MI_PP_RetroConsole
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 4 |
| Bands_Steps | Scalar | 7 |
| Bands_Softness | Scalar | 0.03 |
| Scanlines_Amount | Scalar | 0.16 |
| Scanlines_Pitch | Scalar | 3 |
| Scanlines_Speed | Scalar | 0 |
| Chromatic_Pixels | Scalar | 0.75 |
| Chromatic_Radial | Scalar | 0 |
| Vignette_Amount | Scalar | 0.25 |
| Vignette_Roundness | Scalar | 0.65 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |

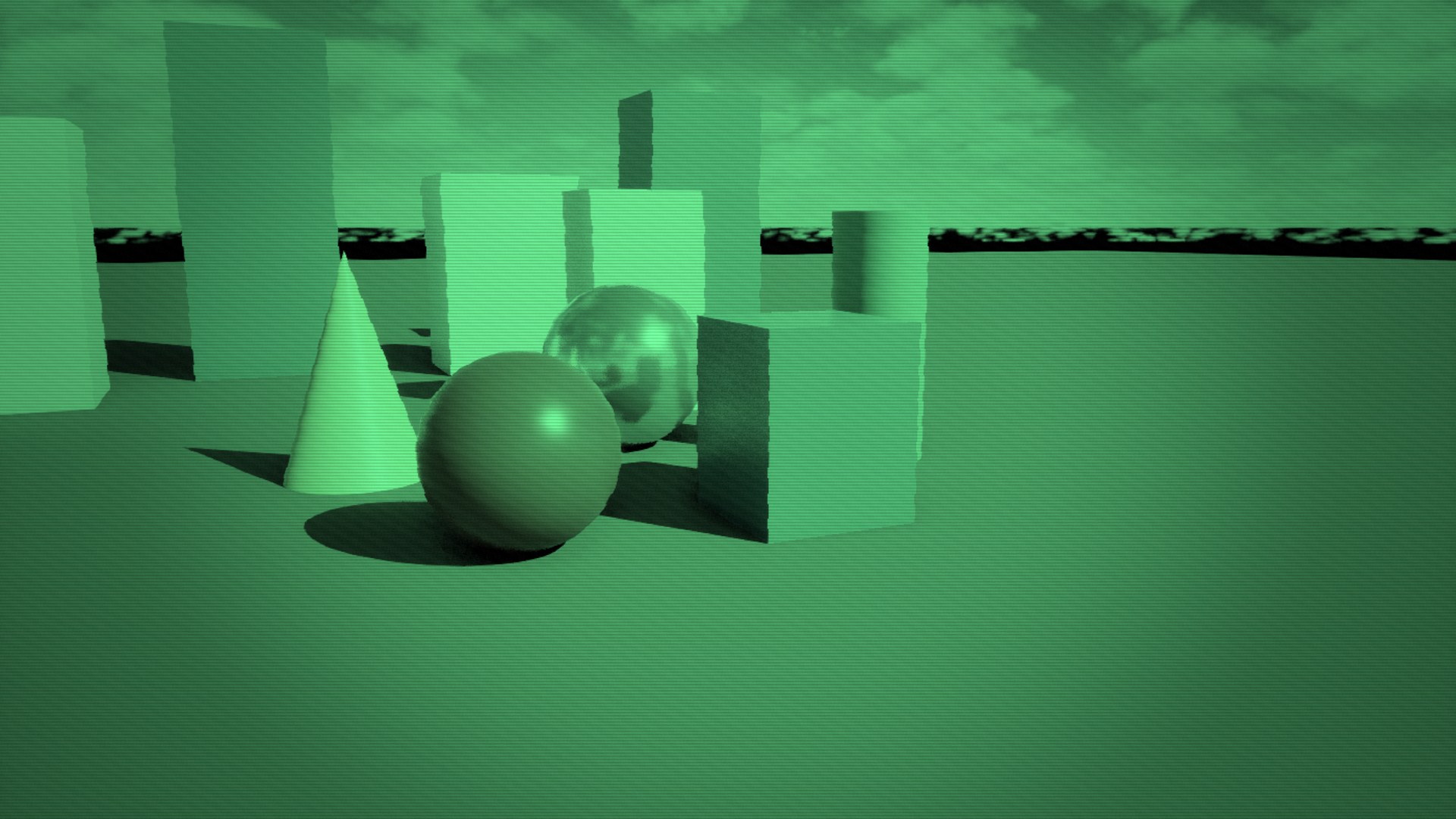

Security Monitor — Combined Recipes
A combined surveillance-camera treatment with scanline and image-damage controls.
/ArtOfShaderUltimatePostProcess/Looks/Recipes/Instances/MI_PP_SecurityMonitor
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 2 |
| Distortion_Speed | Scalar | 0.12 |
| Grade_Saturation | Scalar | 0.1 |
| Grade_Contrast | Scalar | 1.18 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Scanlines_Amount | Scalar | 0.19 |
| Scanlines_Pitch | Scalar | 3 |
| Scanlines_Speed | Scalar | 0.03 |
| Grain_Amount | Scalar | 0.035 |
| Grain_Scale | Scalar | 1 |
| Grain_Animate | Scalar | 1 |
| Vignette_Amount | Scalar | 0.22 |
| Vignette_Roundness | Scalar | 0.65 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 0.45, 1, 0.62, 1 |

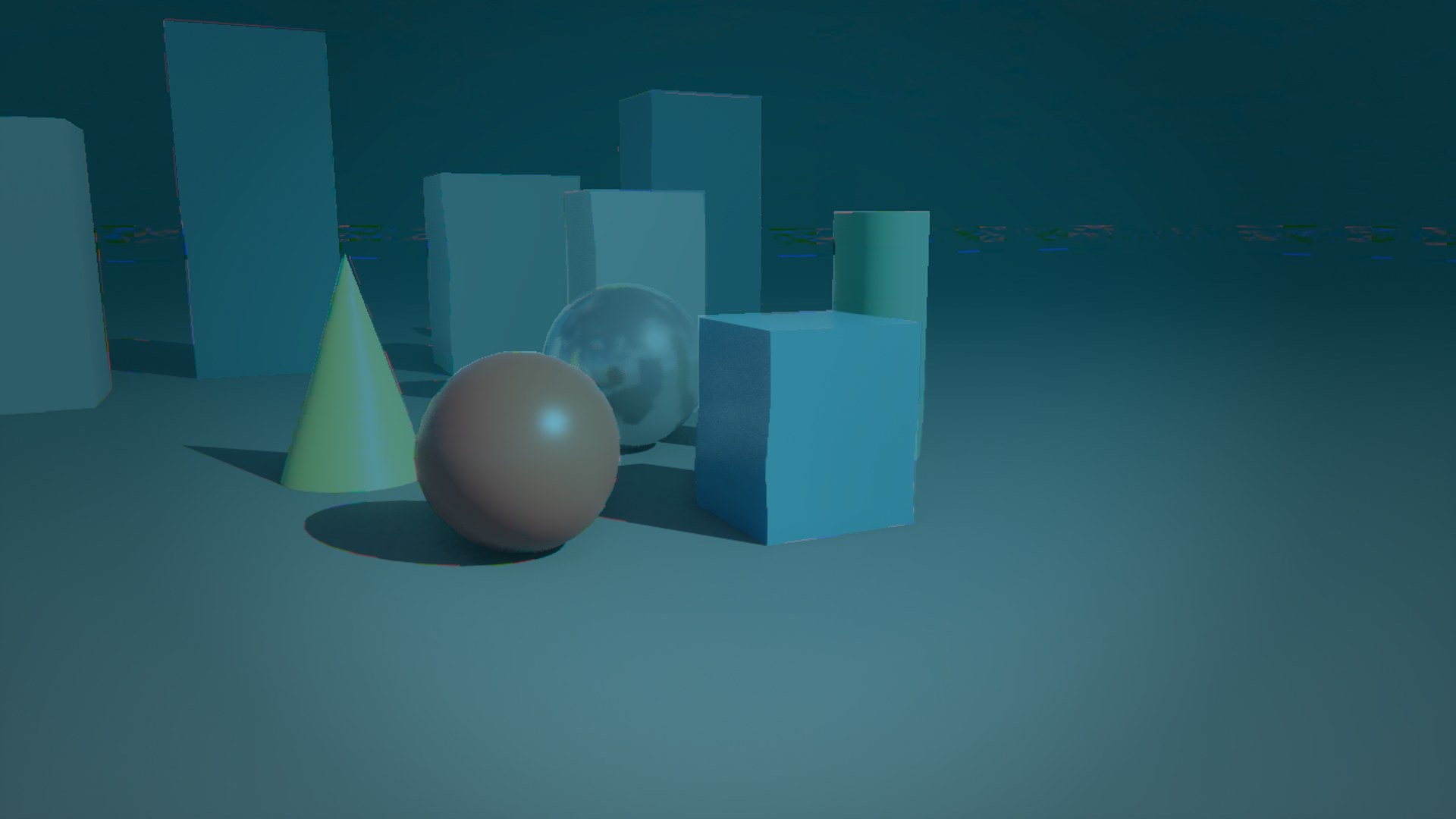

Submerged Camera — Combined Recipes
A combined underwater camera treatment with editable water and image controls.
/ArtOfShaderUltimatePostProcess/Looks/Recipes/Instances/MI_PP_SubmergedCamera
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 2 |
| Distortion_Frequency | Scalar | 14 |
| Distortion_Speed | Scalar | 0.2 |
| Grade_Saturation | Scalar | 0.65 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| DepthFog_Start | Scalar | 240 |
| DepthFog_Distance | Scalar | 1500 |
| Chromatic_Pixels | Scalar | 0.75 |
| Chromatic_Radial | Scalar | 1 |
| Vignette_Amount | Scalar | 0.18 |
| Vignette_Roundness | Scalar | 0.65 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 0.65, 0.95, 1.05, 1 |
| DepthFog_FogColor | Vector (RGBA) | 0.03, 0.25, 0.3, 1 |

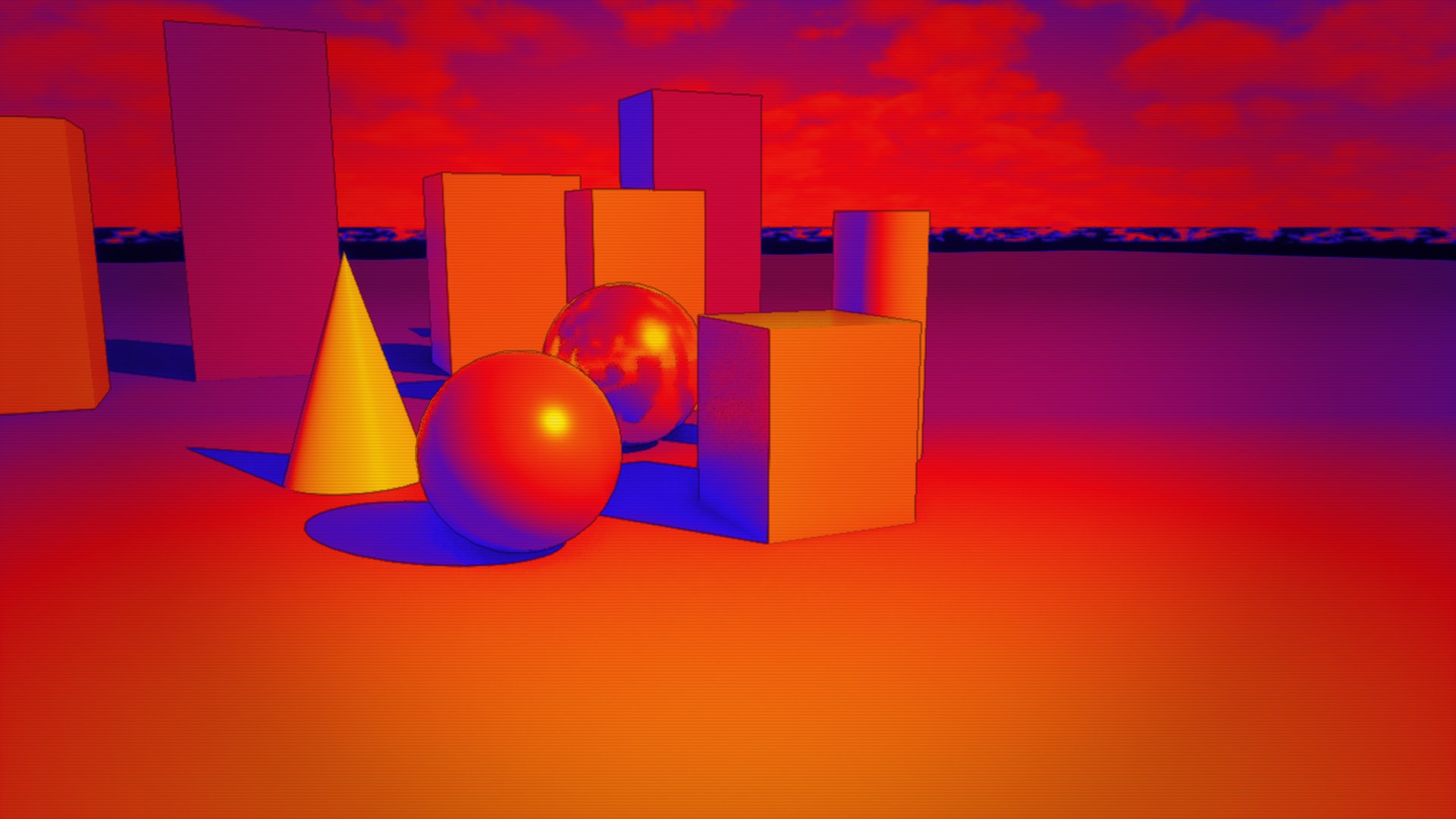

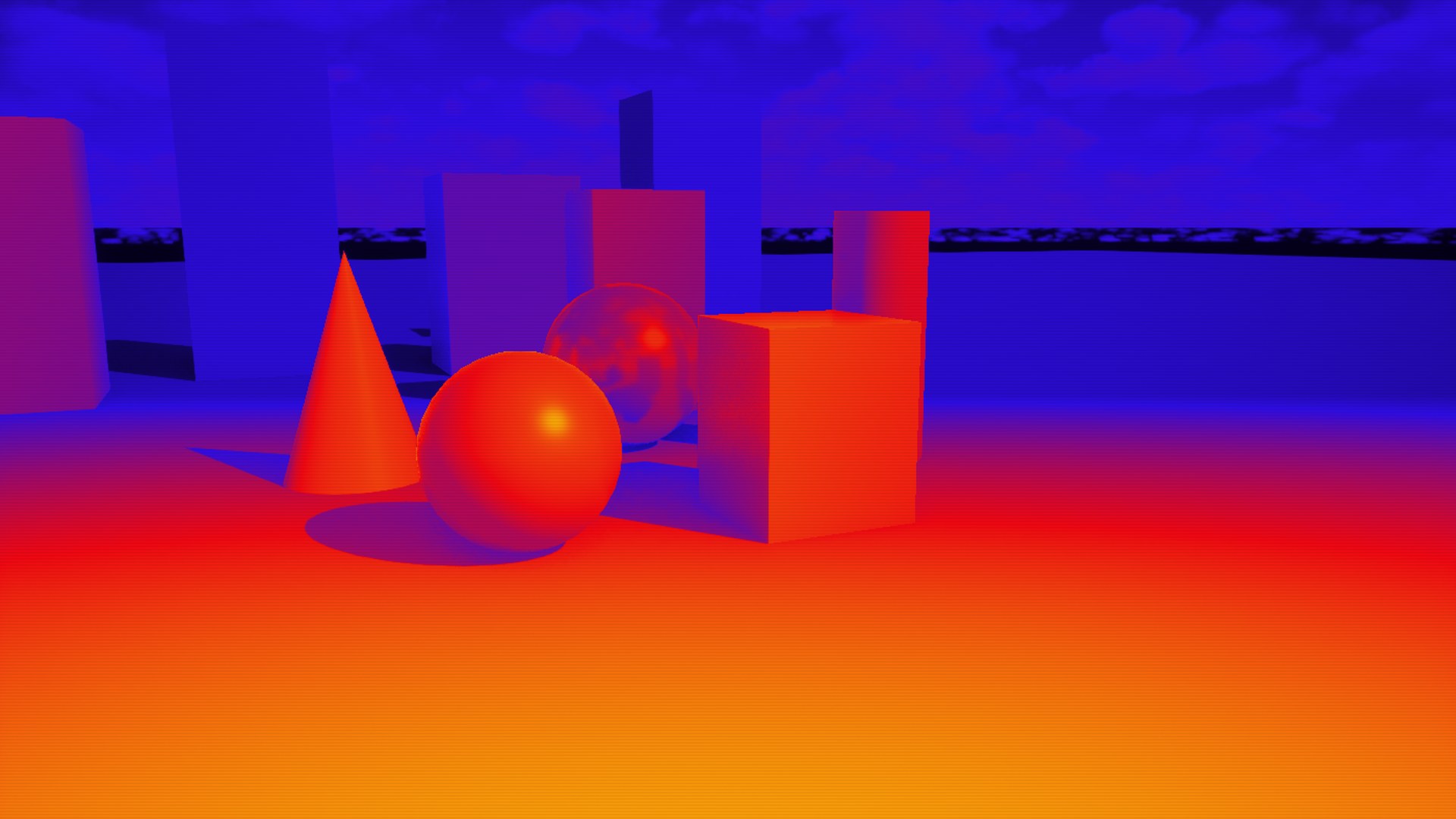

Thermal Recon — Combined Recipes
A reconnaissance recipe with depth/luminance false color and display texture.
/ArtOfShaderUltimatePostProcess/Looks/Recipes/Instances/MI_PP_ThermalRecon
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| ThermalRamp_Range | Scalar | 1800 |
| ThermalRamp_Amount | Scalar | 0.35 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| Ink_Amount | Scalar | 0.32 |
| Scanlines_Amount | Scalar | 0.08 |
| Scanlines_Pitch | Scalar | 3 |
| Scanlines_Speed | Scalar | 0 |
| Vignette_Amount | Scalar | 0.18 |
| Vignette_Roundness | Scalar | 0.65 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Ink_InkColor | Vector (RGBA) | 0.015, 0.02, 0.06, 1 |

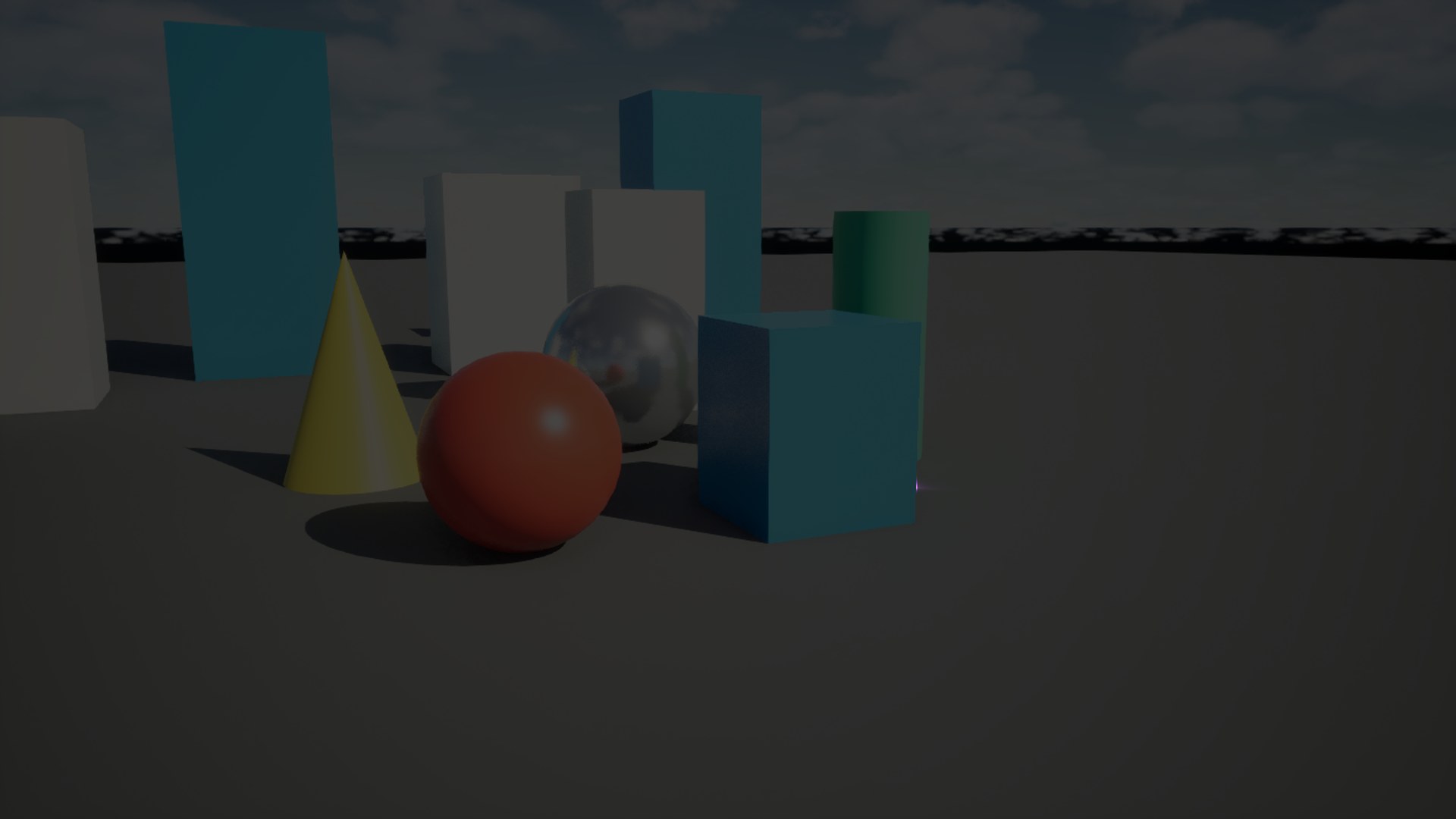

Box Volume Scan — Scan
Visualize a configurable scan field on the surfaces visible to the camera.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_BoxScan
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Scan_Range | Scalar | 500 |
| Scan_Width | Scalar | 30 |
| Scan_Speed | Scalar | 0.45 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| ScanGlow_Background | Scalar | 0.28 |
| ScanGlow_Glow | Scalar | 2.4 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Scan_Origin | Vector (RGBA) | 3910.5, -5363.3, 160, 1 |
| ScanGlow_Tint | Vector (RGBA) | 0.7, 0.25, 1, 1 |
Depth Gate — Scan
Visualize a configurable scan field on the surfaces visible to the camera.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_DepthGate
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Scan_Range | Scalar | 1000 |
| Scan_Width | Scalar | 70 |
| Scan_Speed | Scalar | 0.45 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| ScanGlow_Background | Scalar | 0.3 |
| ScanGlow_Glow | Scalar | 2.4 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| ScanGlow_Tint | Vector (RGBA) | 1, 0.12, 0.6, 1 |
Height Contours — Scan
Anti-aliased horizontal height contours are positioned in world space.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_HeightSlices
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Scan_Range | Scalar | 700 |
| Scan_Width | Scalar | 1.3 |
| Scan_Speed | Scalar | 0.14 |
| Scan_Spacing | Scalar | 88 |
| Outline_Width | Scalar | 0.55 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 0.15 |
| ScanGlow_Background | Scalar | 0.7 |
| ScanGlow_Glow | Scalar | 1.15 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Scan_Origin | Vector (RGBA) | 2410.5, -2765.2, 160, 1 |
| ScanGlow_Tint | Vector (RGBA) | 0.06, 0.66, 0.85, 1 |
Planar Laser Sweep — Scan
Visualize a configurable scan field on the surfaces visible to the camera.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_LaserSweep
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Scan_Range | Scalar | 350 |
| Scan_Width | Scalar | 24 |
| Scan_Speed | Scalar | 0.45 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| ScanGlow_Background | Scalar | 0.4 |
| ScanGlow_Glow | Scalar | 3.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Scan_Origin | Vector (RGBA) | 1910.5, -1899.2, 160, 1 |
| Scan_Direction | Vector (RGBA) | -0.86603, -0.5, 0, 1 |
| ScanGlow_Tint | Vector (RGBA) | 1, 0.06, 0.025, 1 |
LIDAR Point Cloud — Scan
Visualize a configurable scan field on the surfaces visible to the camera.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_LidarCloud
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| ScanLidar_Cell | Scalar | 16 |
| ScanLidar_Speed | Scalar | 0.45 |
| ScanLidar_Range | Scalar | 700 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| ScanLidar_Origin | Vector (RGBA) | 1689.5, -4336.2, 160, 1 |
| ScanLidar_Tint | Vector (RGBA) | 0.05, 0.9, 1, 1 |
Rotating Sector — Scan
Visualize a configurable scan field on the surfaces visible to the camera.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_SectorSweep
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Scan_Range | Scalar | 700 |
| Scan_Width | Scalar | 35 |
| Scan_Speed | Scalar | 0.22 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| ScanGlow_Background | Scalar | 0.2 |
| ScanGlow_Glow | Scalar | 2.4 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Scan_Origin | Vector (RGBA) | 1189.5, -3470.2, 160, 1 |
| ScanGlow_Tint | Vector (RGBA) | 0.1, 1, 0.25, 1 |
Spherical Sonar — Scan
An expanding spherical band highlights visible surfaces around Scan_Origin.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_SonarPulse
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Scan_Range | Scalar | 700 |
| Scan_Width | Scalar | 45 |
| Scan_Speed | Scalar | 0.45 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| ScanGlow_Background | Scalar | 0.38 |
| ScanGlow_Glow | Scalar | 2.4 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Scan_Origin | Vector (RGBA) | 689.45, -2604.2, 160, 1 |
| ScanGlow_Tint | Vector (RGBA) | 0.05, 0.9, 1, 1 |
Surface Analysis — Scan
Visualize a configurable scan field on the surfaces visible to the camera.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_SurfaceGrid
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| ScanGrid_Cell | Scalar | 50 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| ScanGrid_Origin | Vector (RGBA) | 2689.5, -6068.3, 160, 1 |
| ScanGrid_Tint | Vector (RGBA) | 0.05, 0.9, 1, 1 |
Target Acquisition — Scan
A depth-tested target mask adds restrained contours and scan bands to tagged visible objects.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_TargetScan
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Scan_Range | Scalar | 700 |
| Scan_Width | Scalar | 100 |
| Scan_Speed | Scalar | 0.45 |
| Outline_Width | Scalar | 0.65 |
| Outline_DepthSensitivity | Scalar | 1.2 |
| Outline_LumaSensitivity | Scalar | 0.12 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 1 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Scan_Origin | Vector (RGBA) | 3410.5, -4497.2, 160, 1 |
| ScanTarget_Origin | Vector (RGBA) | 3410.5, -4497.2, 160, 1 |
| ScanTarget_Tint | Vector (RGBA) | 0.08, 0.85, 0.68, 1 |
Voxel Reconstruction — Scan
Visualize a configurable scan field on the surfaces visible to the camera.
/ArtOfShaderUltimatePostProcess/Looks/Scan/Instances/MI_PP_VoxelReveal
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| ScanVoxel_Cell | Scalar | 42 |
| ScanVoxel_Range | Scalar | 700 |
| ScanVoxel_Speed | Scalar | 0.35 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| ScanVoxel_Origin | Vector (RGBA) | 2910.5, -3631.2, 160, 1 |
| ScanVoxel_Tint | Vector (RGBA) | 0.28, 0.65, 1, 1 |
Depth Atmosphere — Special Effects
Create a camera or visible-surface treatment for gameplay and cinematic effects.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_DepthFog
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| DepthFog_Start | Scalar | 250 |
| DepthFog_Distance | Scalar | 1300 |
| Grade_Saturation | Scalar | 0.8 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| DepthFog_FogColor | Vector (RGBA) | 0.46, 0.65, 0.7, 1 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |
Heat Damage Vignette — Special Effects
Create a camera or visible-surface treatment for gameplay and cinematic effects.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_Dissolve
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| OrganicBurn_Amount | Scalar | 0.65 |
| OrganicBurn_Speed | Scalar | 0.1 |
| OrganicBurn_Scale | Scalar | 9 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| OrganicBurn_EmberColor | Vector (RGBA) | 1, 0.18, 0.015, 1 |
Hex Energy Shield — Special Effects
Create a camera or visible-surface treatment for gameplay and cinematic effects.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_ForceField
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| HexShield_CellSize | Scalar | 30 |
| HexShield_Amount | Scalar | 0.7 |
| HexShield_Speed | Scalar | 0.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| HexShield_Tint | Vector (RGBA) | 0.08, 0.55, 1, 1 |
Dot Matrix Hologram — Special Effects
Create a camera or visible-surface treatment for gameplay and cinematic effects.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_Hologram
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| HoloMatrix_Pitch | Scalar | 7 |
| HoloMatrix_Speed | Scalar | 0.18 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| HoloMatrix_Tint | Vector (RGBA) | 0.08, 0.82, 1, 1 |
Binocular Night Vision — Special Effects
Create a camera or visible-surface treatment for gameplay and cinematic effects.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_NightVision
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Palette_Midpoint | Scalar | 0.5 |
| Grain_Amount | Scalar | 0.15 |
| Grain_Scale | Scalar | 1 |
| Grain_Animate | Scalar | 1 |
| NightScope_Radius | Scalar | 0.46 |
| NightScope_Gain | Scalar | 1.2 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.003, 0.015, 0.003, 1 |
| Palette_Midtones | Vector (RGBA) | 0.07, 0.65, 0.025, 1 |
| Palette_Highlights | Vector (RGBA) | 0.72, 1, 0.48, 1 |
Phosphor Radar Scope — Special Effects
Create a camera or visible-surface treatment for gameplay and cinematic effects.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_Radar
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| RadarScope_Speed | Scalar | 0.18 |
| RadarScope_Radius | Scalar | 0.46 |
| RadarScope_Persistence | Scalar | 3 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Velocity Focus — Special Effects
Create a camera or visible-surface treatment for gameplay and cinematic effects.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_SpeedFocus
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| RadialBlur_Amount | Scalar | 0.035 |
| RadialBlur_Radius | Scalar | 0.16 |
| Chromatic_Pixels | Scalar | 2 |
| Chromatic_Radial | Scalar | 1 |
| Vignette_Amount | Scalar | 0.25 |
| Vignette_Roundness | Scalar | 0.65 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Thermal Imaging — Special Effects
Depth and luminance are mapped into a configurable false-color thermal-style palette.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_Thermal
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| ThermalRamp_Range | Scalar | 2000 |
| ThermalRamp_Amount | Scalar | 0.65 |
| Scanlines_Amount | Scalar | 0.08 |
| Scanlines_Pitch | Scalar | 3 |
| Scanlines_Speed | Scalar | 0 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Underwater Caustics — Special Effects
Create a camera or visible-surface treatment for gameplay and cinematic effects.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_Underwater
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 2 |
| Distortion_Frequency | Scalar | 22 |
| Distortion_Speed | Scalar | 0.35 |
| DepthFog_Start | Scalar | 180 |
| DepthFog_Distance | Scalar | 2300 |
| Grade_Saturation | Scalar | 1 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1.08 |
| SurfaceCaustics_Scale | Scalar | 0.018 |
| SurfaceCaustics_Amount | Scalar | 0.65 |
| SurfaceCaustics_Speed | Scalar | 0.3 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| DepthFog_FogColor | Vector (RGBA) | 0.035, 0.22, 0.27, 1 |
| Grade_Tint | Vector (RGBA) | 0.8, 0.96, 1, 1 |
Depth Tomography — Special Effects
Create a camera or visible-surface treatment for gameplay and cinematic effects.
/ArtOfShaderUltimatePostProcess/Looks/SpecialFX/Instances/MI_PP_XRay
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Tomography_Spacing | Scalar | 85 |
| Tomography_Width | Scalar | 0.085 |
| Tomography_Speed | Scalar | 0.35 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Technical Blueprint — Stylized
Reshape the scene with an editable print, drawing, painting, or patterned treatment.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_Blueprint
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| DraftPlate_GridSize | Scalar | 32 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| DraftPlate_InkColor | Vector (RGBA) | 0.55, 0.83, 0.94, 1 |
Ink Stippling — Stylized
Reshape the scene with an editable print, drawing, painting, or patterned treatment.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_Charcoal
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Stipple_Spacing | Scalar | 5 |
| Stipple_DotSize | Scalar | 0.47 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Stipple_InkColor | Vector (RGBA) | 0.015, 0.02, 0.025, 1 |
Duotone Print — Stylized
Reshape the scene with an editable print, drawing, painting, or patterned treatment.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_Duotone
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Palette_Midpoint | Scalar | 0.5 |
| Paper_Amount | Scalar | 0.08 |
| Paper_Scale | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.035, 0.06, 0.15, 1 |
| Palette_Midtones | Vector (RGBA) | 0.5, 0.15, 0.38, 1 |
| Palette_Highlights | Vector (RGBA) | 1, 0.83, 0.36, 1 |
Ceramic Mosaic — Stylized
Reshape the scene with an editable print, drawing, painting, or patterned treatment.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_Mosaic
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 24 |
| Grade_Saturation | Scalar | 1.15 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| TileMortar_Pixels | Scalar | 24 |
| TileMortar_Width | Scalar | 1.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |
| TileMortar_MortarColor | Vector (RGBA) | 0.04, 0.045, 0.05, 1 |
Bristle Oil Daubs — Stylized
Reshape the scene with an editable print, drawing, painting, or patterned treatment.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_OilDaubs
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| BrushDaubs_Size | Scalar | 14 |
| BrushDaubs_Bristles | Scalar | 0.3 |
| Grade_Saturation | Scalar | 1.22 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1.15 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |
Graphite Drawing — Stylized
Reshape the scene with an editable print, drawing, painting, or patterned treatment.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_Pencil
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| GraphiteDodge_Radius | Scalar | 3 |
| GraphiteDodge_Pressure | Scalar | 0.8 |
| Paper_Amount | Scalar | 0.07 |
| Paper_Scale | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Ordered Pixel Dither — Stylized
Reshape the scene with an editable print, drawing, painting, or patterned treatment.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_RetroPixel
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Distortion_Pixels | Scalar | 5 |
| OrderedDither_PixelSize | Scalar | 5 |
| OrderedDither_Levels | Scalar | 4 |
| OrderedDither_Amount | Scalar | 0.8 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Misregistered Riso — Stylized
Reshape the scene with an editable print, drawing, painting, or patterned treatment.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_Risograph
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| RisoPlates_Size | Scalar | 5 |
| RisoPlates_Registration | Scalar | 3 |
| Paper_Amount | Scalar | 0.12 |
| Paper_Scale | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| RisoPlates_InkA | Vector (RGBA) | 0.04, 0.27, 0.42, 1 |
| RisoPlates_InkB | Vector (RGBA) | 0.92, 0.2, 0.12, 1 |
Leaded Glass — Stylized
Reshape the scene with an editable print, drawing, painting, or patterned treatment.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_StainedGlass
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| VoronoiGlass_CellSize | Scalar | 28 |
| VoronoiGlass_LeadWidth | Scalar | 1.4 |
| VoronoiGlass_Saturation | Scalar | 1.7 |
| VoronoiGlass_Relief | Scalar | 0.18 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Wet Watercolor — Stylized
A Kuwahara scene filter combines with editable watercolor and paper treatments.
/ArtOfShaderUltimatePostProcess/Looks/Stylized/Instances/MI_PP_Watercolor
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Kuwahara_Radius | Scalar | 5 |
| Grade_Saturation | Scalar | 0.75 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0.14 |
| Grade_Gamma | Scalar | 1.3 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| WetPigment_Bleed | Scalar | 0.65 |
| WetPigment_Scale | Scalar | 8 |
| Paper_Amount | Scalar | 0.09 |
| Paper_Scale | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |
| WetPigment_PaperColor | Vector (RGBA) | 0.97, 0.96, 0.89, 1 |
Paper Cutout — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_BoldInk
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| PaperCutout_Colors | Scalar | 4 |
| PaperCutout_ShadowOffset | Scalar | 8 |
| PaperCutout_ShadowAmount | Scalar | 0.6 |
| Paper_Amount | Scalar | 0.035 |
| Paper_Scale | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
Clean Cel — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_CleanCel
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Bands_Steps | Scalar | 4 |
| Bands_Softness | Scalar | 0.05 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| Ink_Amount | Scalar | 0.6 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Ink_InkColor | Vector (RGBA) | 0.008, 0.012, 0.018, 1 |
Triangular Facets — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_ColoredInk
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| TriangleFacets_Size | Scalar | 24 |
| TriangleFacets_Relief | Scalar | 0.18 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
CMYK Comic Print — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_ComicDots
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| CMYKScreen_Size | Scalar | 7 |
| CMYKScreen_Registration | Scalar | 1.3 |
| CMYKScreen_DotGain | Scalar | 0.06 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| Ink_Amount | Scalar | 0.5 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Ink_InkColor | Vector (RGBA) | 0.008, 0.012, 0.018, 1 |
Contour Engraving — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_Crosshatch
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Blur9_Radius | Scalar | 3 |
| ContourEngraving_Lines | Scalar | 17 |
| ContourEngraving_Width | Scalar | 0.13 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| ContourEngraving_InkColor | Vector (RGBA) | 0.045, 0.065, 0.08, 1 |
Neon Contours — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_LuminousInk
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| NeonContours_Width | Scalar | 1.3 |
| NeonContours_Glow | Scalar | 0.9 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| NeonContours_Tint | Vector (RGBA) | 0.04, 0.9, 1, 1 |
Manga Screen Tone — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_Manga
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Grade_Saturation | Scalar | 0 |
| Grade_Contrast | Scalar | 1 |
| Grade_Lift | Scalar | 0.08 |
| Grade_Gamma | Scalar | 2 |
| Halftone_Size | Scalar | 5 |
| Halftone_Amount | Scalar | 1 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| Ink_Amount | Scalar | 0.9 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |
| Halftone_InkColor | Vector (RGBA) | 0.02, 0.02, 0.03, 1 |
| Ink_InkColor | Vector (RGBA) | 0.008, 0.012, 0.018, 1 |
Two Tone Noir — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_Noir
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Grade_Saturation | Scalar | 0 |
| Grade_Contrast | Scalar | 1.35 |
| Grade_Lift | Scalar | 0 |
| Grade_Gamma | Scalar | 1 |
| Bands_Steps | Scalar | 2 |
| Bands_Softness | Scalar | 0.05 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| Ink_Amount | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Grade_Tint | Vector (RGBA) | 1, 1, 1, 1 |
| Ink_InkColor | Vector (RGBA) | 0.008, 0.012, 0.018, 1 |
Pop Art — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_PopArt
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| Bands_Steps | Scalar | 3 |
| Bands_Softness | Scalar | 0.05 |
| Palette_Midpoint | Scalar | 0.5 |
| Halftone_Size | Scalar | 11 |
| Halftone_Amount | Scalar | 0.65 |
| Outline_Width | Scalar | 1.2 |
| Outline_DepthSensitivity | Scalar | 2 |
| Outline_LumaSensitivity | Scalar | 1 |
| Ink_Amount | Scalar | 1 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| Palette_Shadows | Vector (RGBA) | 0.06, 0.01, 0.18, 1 |
| Palette_Midtones | Vector (RGBA) | 0.95, 0.025, 0.18, 1 |
| Palette_Highlights | Vector (RGBA) | 1, 0.86, 0.025, 1 |
| Halftone_InkColor | Vector (RGBA) | 0.02, 0.02, 0.03, 1 |
| Ink_InkColor | Vector (RGBA) | 0.008, 0.012, 0.018, 1 |
Clay Relief — Toon
Combine tone shaping with an editable illustration, contour, or surface-pattern treatment.
/ArtOfShaderUltimatePostProcess/Looks/Toon/Instances/MI_PP_SoftCel
| Parameter | Type | Authored default |
|---|---|---|
| AnimationSpeed | Scalar | 1 |
| ClayRelief_Rim | Scalar | 0.45 |
| Strength | Scalar | 1 |
| Split | Scalar | 0 |
| SplitPosition | Scalar | 0.5 |
| StencilID | Scalar | 1 |
| UseStencil | Scalar | 0 |
| PostProcessBlend | Scalar | 1 |
| PostProcessMultiplyBlend | Scalar | 0 |
| PostProcessOverlayBlend | Scalar | 0 |
| ClayRelief_LightDirection | Vector (RGBA) | -0.4, -0.5, 0.75, 1 |
| ClayRelief_ClayColor | Vector (RGBA) | 0.64, 0.76, 0.67, 1 |
